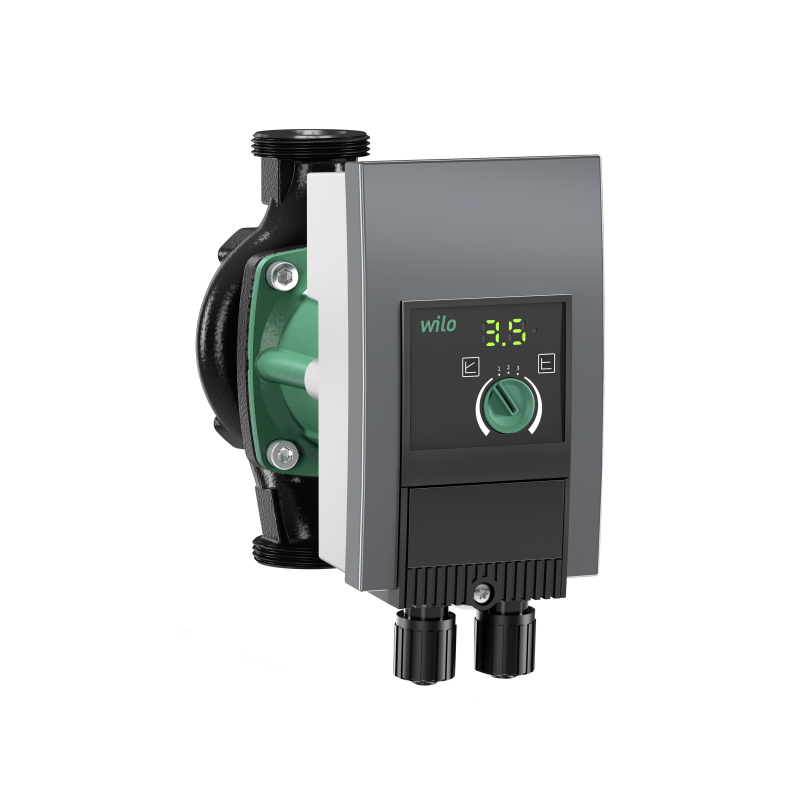

Wilo-Yonos MAXO 30/0,5-10 PN10 Single Pump

Upgrade your commercial circulation system with the Wilo-Yonos MAXO 30/0,5-10 PN10, delivering high efficiency and dependable performance. This glandless circulator (threaded/flange connection) features an advanced EC motor with automatic power adjustment, perfect for demanding environments. It optimises operations and cuts energy costs. National Pumps and Boilers proudly offers this top-tier solution.

Smart, Efficient, and Robust: The Wilo-Yonos MAXO Advantage

Commercial Hot-water heating, air-conditioning, closed cooling, and industrial circulation systems demand smart, economical equipment. The Wilo-Yonos MAXO 30/0,5-10 PN10 Single Pump from Wilo is just that. A leading High Efficiency Circulator, its EC motor design with automatic power adjustment forms the reliable heart of your system.

This Commercial Circulator Wilo pump offers exceptional energy efficiency. Intelligent ECM technology optimises power usage to your system's demands, ensuring no wasted energy and slashed energy costs. Its adaptable performance provides operating modes like Δp-c (constant differential pressure), Δp-v (variable differential pressure), and n = constant (3 speed stages). Full manual control allows setting the operating mode, pump output, and speed stages.

Automatic functions like infinitely variable power adjustment, deblocking, soft start, and integrated full motor protection enhance reliability. User-friendly operation is guaranteed with an LED display for delivery head, fault codes, and speed stage, plus fault/collective signal lights. Wilo ensures quick & easy installation via the Wilo plug and wrench attachment point. Its versatile application suits many demanding systems, exemplifying the quality commercial circulators we stock.

Product Specifications

• Product Name: Wilo-Yonos MAXO 30/0,5-10 PN10 (High-efficiency pump, electronically controlled)
• Manufacturer: Wilo
• Type: Glandless circulator, EC motor with automatic power adjustment.
• Nominal Connection Diameter: DN 30
• Nominal Delivery Head Range: 0.5-10 m
• Permitted Fluid Temperature Range: -20°C to +110°C
• Mains Connection: 1~230 V, 50/60 Hz
• Protection Class: IP X4D
• Flange Connections: DN 32-DN 80 (model dependent)
• Max. Operating Pressure: 6/10 bar or 6 bar (special: 10 bar)
• Energy Efficiency Index (EEI): ≤ 0.20 (refer to datasheet)
• Materials:

• Pump Housing: Grey cast iron (cataphoretic-coated)
• Impeller: Plastic (PPS - 40% GF)
• Shaft: Stainless steel
• Bearing: Carbon, metal impregnated

• Equipment: LED display, fault signal, Wilo plug, wrench point.
• Delivery: Pump, gaskets/washers (model specific), install/operating instructions.

(Always refer to the official Wilo datasheet for the most precise and up-to-date specifications for this model)
