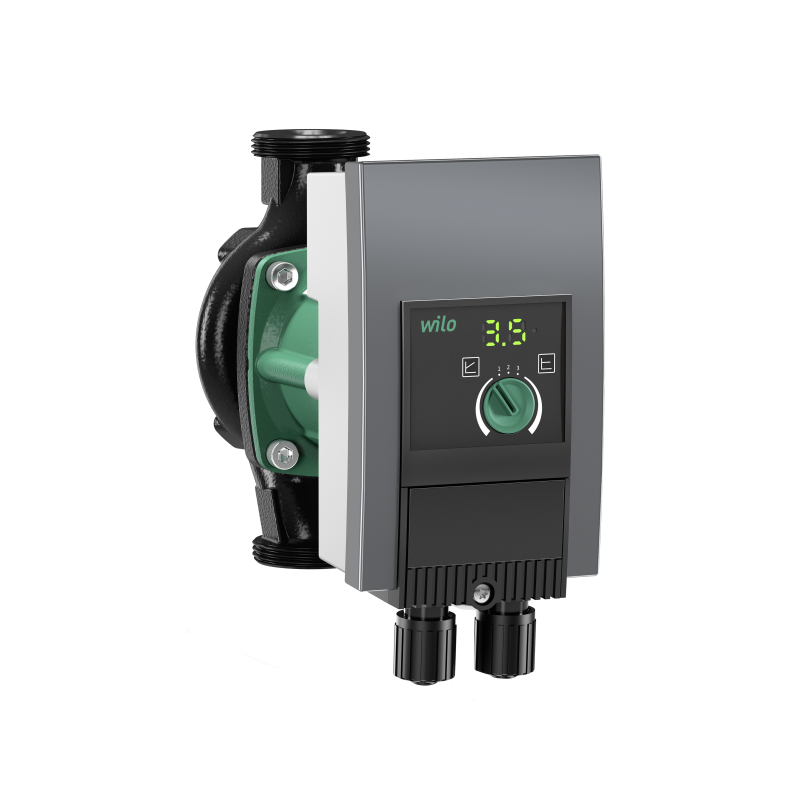

Wilo-Yonos MAXO 30/0,5-12 PN10 Single Pump

Hello! For a high-efficiency, reliable, and user-friendly circulator pump for your heating, air conditioning, or industrial system, the Wilo-Yonos MAXO 30/0,5-12 PN10 Single Pump is an excellent fit. It's designed for top performance while managing energy bills. National Pumps and Boilers provides solutions that simplify your life and enhance system smoothness.

Experience Peak Efficiency, Reliability, and Key Benefits with the Wilo-Yonos MAXO

The Wilo-Yonos MAXO 30/0,5-12 PN10 Single Pump showcases Wilo's engineering, vital for smooth HVAC or industrial processes. This glandless circulator, with its EC motor featuring automatic power adjustment, is a smart, robust, and efficient solution. Whether upgrading or new, the wilo yonos maxo 30/0.5-12 impresses. It's suited for Hot-water heating, air-conditioning, closed cooling circuits, and industrial circulation systems.

A key feature is significant energy savings from advanced ECM technology. This pump intelligently adjusts performance to actual demand, using only necessary power. It's adaptable with various operating modes (Δp-c constant differential pressure, Δp-v variable differential pressure, n = constant (3 speeds)), all easily set. Manual functions allow fine-tuning.

Easy setup and operation with Wilo’s "Green Button Technology" and clear LED display for simple & intuitive use. Automatic functions like deblocking, soft start, and full motor protection ensure durability. Installers benefit from the Wilo-Connector for quick installation (tool-free electrical connection), compact design, and wrench point for threaded versions. A quality example from our commercial circulators range.

Product Specifications

• Product Name: Wilo-Yonos MAXO 30/0,5-12 PN10 Single Pump
• Manufacturer: Wilo
• Model Variants: wilo yonos maxo 30/0 5-12, wilo yonos maxo 30/0.5-12
• Design & Type: Glandless circulator (threaded/flange), electronically controlled EC motor, auto power adjustment. High-efficiency.
• Application: Hot-water heating, air-conditioning, closed cooling, industrial circulation.
• Nominal Diameter: DN 30
• Delivery Head: 0.5 m to 12 m
• Pressure Class: PN10
• Max. Operating Pressure: 6/10 bar or 6 bar (special: 10 bar)
• EEI: ≤ 0.20 (Refer to datasheet)
• Fluid Temp Range: -20 °C to +110 °C
• Mains Connection: 1~230 V, 50/60 Hz
• Protection Class: IPX4D
• Materials: Housing: Grey cast iron (cataphoretic-coated); Impeller: Plastic; Shaft: Stainless steel; Bearing: Carbon, metal impregnated.
• Key Functions: Modes (Δp-c, Δp-v, 3 speeds); Manual (mode, output, speed); Auto (variable power, deblocking, soft start, motor protection); Signal/Display (fault contact/light, LED for head/codes/speed); Install aids (wrench point, Wilo plug).
• Scope of Delivery: Pump, gaskets (threaded), washers (flange screws DN 32–65), instructions.

Ready to Optimise Your System?

For efficient, reliable circulation, the Wilo-Yonos MAXO 30/0,5-12 PN10 is a superb investment. For upgrades or advice, contact National Pumps and Boilers; we stock a wide range of pumps and boilers.
