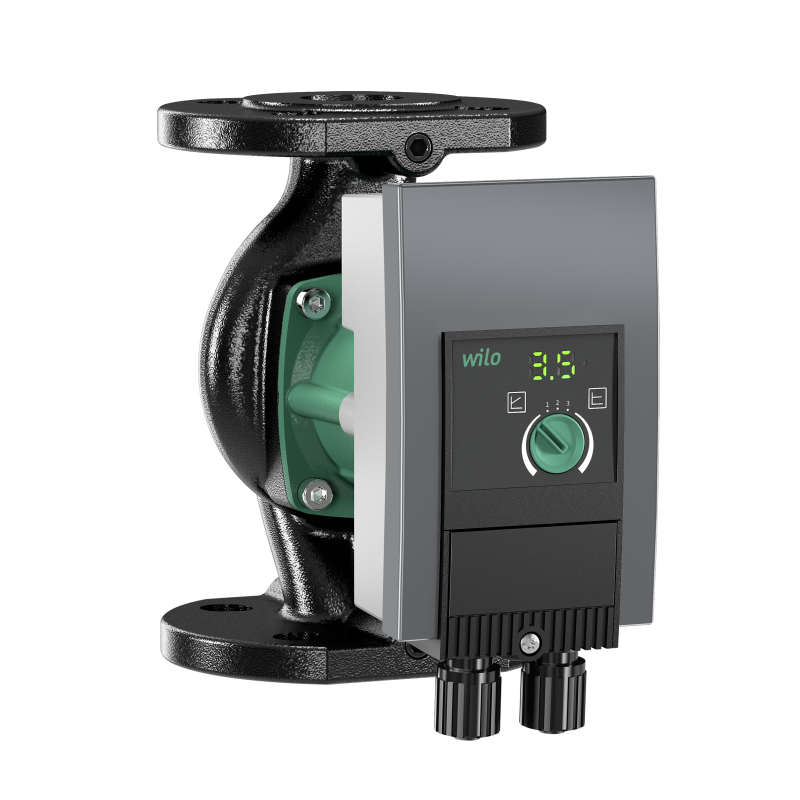

Wilo-Yonos MAXO 50/0.5-12 PN6/10 Single Pump

Welcome! For a top-notch, efficient, and user-friendly circulation pump, look no further. We're delighted to introduce the Wilo Yonos MAXO 50/0.5-12 PN6/10 Single Pump! This high-performer, a glandless circulator with an EC motor and automatic power adjustment, is expertly designed for smooth operation in your heating, air-conditioning, or industrial systems. It’s a fantastic choice for reliability and lower running costs, with a friendly welcome from National Pumps and Boilers.

Full Product Description & Key Benefits

Wilo Yonos MAXO: Your System's New Best Friend

The Wilo Yonos MAXO 50/0.5-12 is a high-efficiency circulator from Wilo, engineered for excellence. This robust pump is ideal for diverse applications like hot-water central heating, air-conditioning, closed cooling circuits, and industrial circulation. Its key benefit is its ability to slash your energy costs, thanks to a high-efficiency EC motor with infinitely variable power adjustment, significantly reducing power consumption.

The Yonos MAXO 50/0.5-12 offers versatile performance with easy setting of operating mode (Δp-c, Δp-v, constant speed with 3 stages), output, and speed. Automatic functions like deblocking, soft start, and full motor protection ensure reliable operation. Setup is simple with Wilo's "Green Button Technology" and an intuitive LED display, which keeps you always informed of delivery head, speed stage, and fault codes, with a collective fault signal for external monitoring.

Installation is also a doddle. Features like the Wilo-Connector for quick electrical connection enable quick & easy installation. Its robust construction, including a cataphoretic coated grey cast iron housing, ensures it’s built to last. This pump intelligently and reliably performs, making it a prime choice for commercial circulators.

Product Specifications: Wilo Yonos MAXO 50/0.5-12 PN6/10 Single Pump

• Product: Wilo-Yonos MAXO 50/0.5-12 PN6/10 Single Pump
• Design: Glandless circulator, EC motor, auto power adjustment
• Application: Heating, AC, cooling circuits, industrial circulation
• Max Delivery Head: 12 m (Nominal 0.5-12 m)
• Pipe Connection: Flange DN 50 (PN 6/10)
• Pressure Rating: PN6/10
• EEI: ≤ 0.20 (See datasheet)
• Mains: 1~230 V, 50/60 Hz
• Control Modes: Δp-c, Δp-v, Constant speed (3 stages)
• Protection: IP X4D
• Fluid Temp: -20 °C to +110 °C
• Max Pressure: 6/10 bar
• Materials: Housing: Coated grey cast iron; Impeller: Plastic; Shaft: Stainless steel; Bearing: Carbon
• Features: LED display, Green Button, Wilo-Connector, motor protection, deblocking, soft start, fault signal.
• Scope of Delivery: Pump, flange screw washers (DN 32–DN 65), instructions.

• Consider flanges or pump accessories.
