- A Step-by-Step Guide to Installing Ground Source Heat Pumps in Commercial Spaces
Every building engineer knows that heating and cooling are where the big energy costs hide. Over time, even the most efficient boiler setup starts losing the battle against rising prices. That’s where the ground source heat pump comes into play, not as a trendy green solution, but as a workhorse.
The ground source heat pump install process isn’t complicated once you understand the sequence. This GSHP installation guide walks through it step by step, from checking the soil to tuning the final flow rates, so you know what makes a reliable, long-lasting system.
At National Pumps and Boilers, we’ve seen plenty of installs succeed and a few fail. The difference usually comes down to planning, component quality, and attention to detail.
Why Engineers Choose Ground Source Heat Pumps
A ground source heat pump moves heat instead of generating it. The ground stays at a steady temperature year-round, and the system uses that stability to heat or cool your building. It’s dependable and predictable, traits any engineer values.
There’s no fuel storage, no flue gases, and no noisy outdoor unit fighting the weather. You’re drawing heat from the earth when it’s cold and putting it back when it’s hot. The result? Lower running costs, smaller carbon output, and quieter operation.
For big commercial sites, the energy savings alone make it worth the investment.
Step 1: Start with a Proper Site Assessment
A good ground source heat pump install begins long before the drill hits the soil. You start with data and patience.
Check the soil type first. Clay holds heat well; sandy ground loses it fast. Then look at available space, vertical boreholes for tight plots, horizontal loops if there’s room to spread out.
Don’t forget the building load. Heating and cooling demands change through the year, so get those figures right. Under-sizing kills performance; oversizing wastes capital. The groundwork at this stage saves money later.
Step 2: Design the System and Choose the Right Parts
Once the survey’s done, it’s time to put the system together on paper. The GSHP installation guide doesn’t need to be fancy, just accurate. Think through pipe routes, flow rates, and access for maintenance.
Heat Pumps, The Core Unit
The heat pump is where the ground’s low-grade energy becomes usable heat. For commercial systems, durability is king. Grundfos, Lowara, and Wilo models supplied by National Pumps and Boilers are built for these heavy-duty applications.
Expansion Vessels, Quiet but Crucial
Every sealed system needs room to breathe. Expansion vessels absorb pressure changes as temperatures shift, stopping pipes from straining or seals from failing. You’ll find tough, commercial-grade expansion vessels that handle continuous use without fuss.
Pump Valves, Flow Under Control
Efficient flow means efficient transfer. Pump valves keep the fluid moving evenly through the loops. Unbalanced flow leads to poor heat exchange and uneven comfort levels. The pump valves from National Pumps and Boilers are built to handle these precise demands.

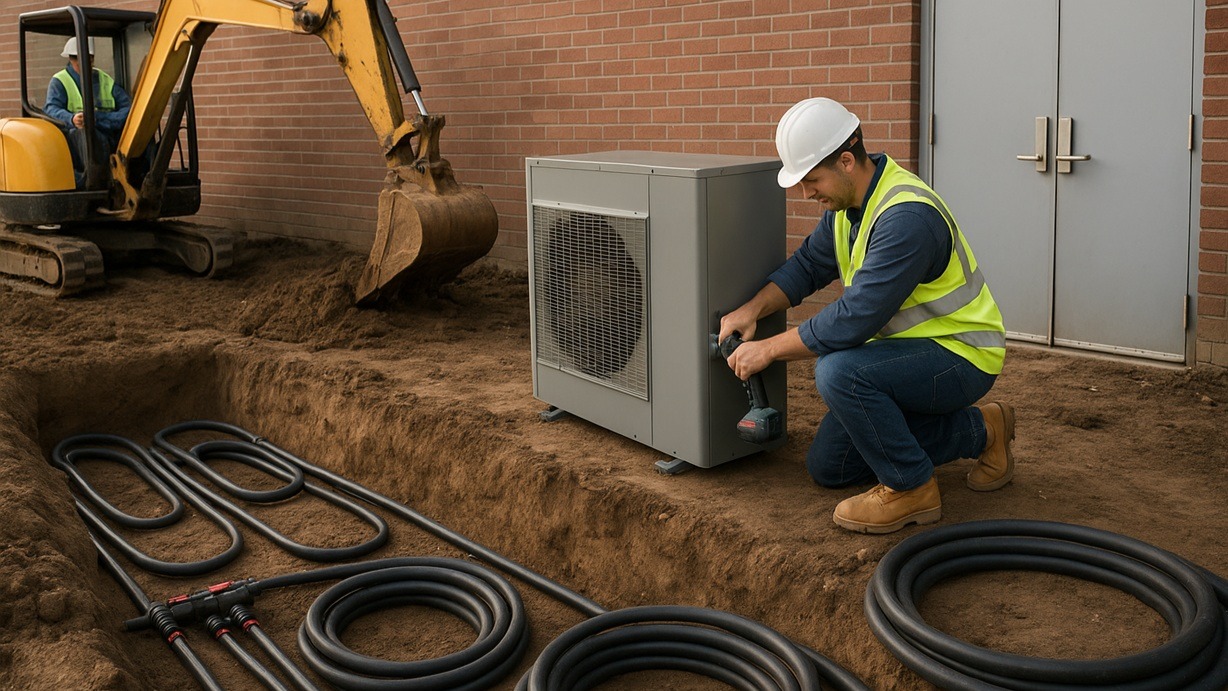

Step 3: Lay the Ground Loops
This is where theory meets dirt. The ground loops are your connection to the Earth’s stored heat.
- Vertical loops: Drilled straight down, ideal when space is tight.
- Horizontal loops: Spread wide and shallow, cheaper if land is available.
Whatever the choice, keep spacing uniform and use consistent materials. Poor installation here shows up years later in uneven heating and reduced efficiency. It’s worth taking the time to do it once and do it properly.
Step 4: Connect, Pressure, and Balance
Once the loops are buried, start linking the internal kit, the heat pump, pressure vessels, and valves.
Balance the system slowly. Check pressures, flow rates, and temperature differences. If it’s connected to a Building Management System (BMS), integrate controls for load tracking and automatic optimisation.
A steady pressure curve and balanced flow mean fewer service calls and better long-term performance.
Step 5: Test, Tune, and Commission
Never skip the testing phase. It’s where you catch mistakes before they become maintenance contracts.
- Pressure tests: Confirm the loop holds steady.
- Flow checks: Verify consistent circulation across all circuits.
- Calibration: Tune the pump speeds, expansion charge, and controls.
Only when everything balances should the system go live. A good commissioning report is worth more than a new brochure.
Step 6: Keep It Running Smoothly
A ground source heat pump install isn’t a fit-and-forget system. Like any mechanical setup, it rewards routine care.
Clean filters, check pressure, review energy logs. Preventive maintenance once or twice a year keeps the efficiency figures where they should be. If a BMS is installed, use its data; it’ll tell you more than guesswork ever could.
Most problems don’t start suddenly; they build quietly. Catching them early saves time and budget.
Analogy: The Earth as a Constant Radiator
Think of the ground as a massive radiator that never switches off. You just tap into it when you need warmth and send heat back when you don’t. The GSHP installation guide is simply about making that exchange as smooth and balanced as possible.
Anecdote: A Factory That Finally Fixed Its Heating Costs
A plastics plant outside Coventry replaced its ageing oil system with a ground source heat pump install five years ago. The project wasn’t flashy, just careful planning and solid components. Since then, their annual energy costs have dropped by roughly 35%. The maintenance manager summed it up best: “We used to fix problems every winter. Now we mostly just check the readings.”
The Payoff: Long-Term Value
When installed and maintained correctly, GSHPs deliver consistent comfort and stable costs. They cut emissions without cutting performance, a rare balance in commercial HVAC.
Each system is a quiet investment: fewer repairs, predictable running costs, and a smaller footprint. That’s why this technology keeps finding its way into schools, offices, hospitals, and factories across the country.
Why Work with National Pumps and Boilers
National Pumps and Boilers supplies the components that make these systems reliable from the first day of operation.
Our range includes:
We partner with manufacturers like Vaillant, DAB, and Armstrong to supply reliable, energy-efficient systems.
If you’re planning a new installation or upgrading an old system, get in touch. We’ll help you design and specify it right the first time.
Final Thoughts
A ground source heat pump isn’t complicated, but it demands care and precision. Follow this GSHP installation guide, use dependable parts, and take the time to balance it properly. Do that, and you’ll have a system that works quietly in the background, saving energy, reducing emissions, and staying out of the repair log for years.
Good engineering isn’t about quick wins. It’s about building systems that just keep working.
