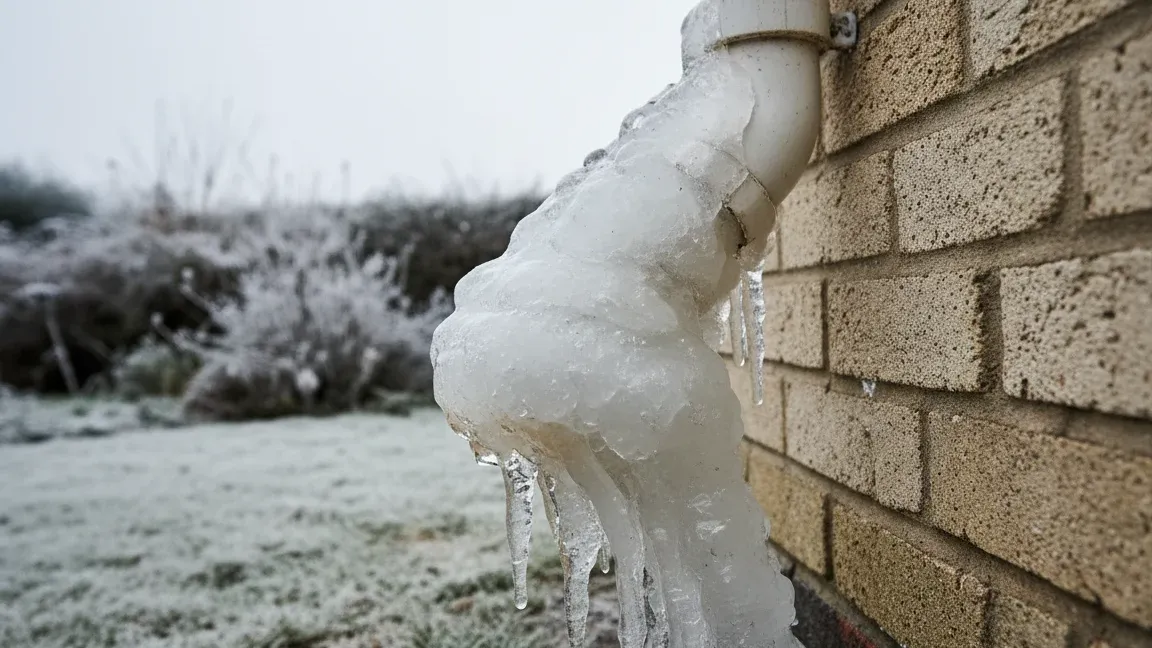

- Preventing Condensate Line Freezing in Cold Weather
Condensate return represents one of the most overlooked opportunities for improving boiler efficiency in commercial and industrial heating systems. When steam condenses after transferring its heat, the resulting hot water contains significant thermal energy - yet many facilities simply waste this resource by dumping condensate to drain. Understanding why condensate return matters and how to optimise these systems can deliver substantial cost savings whilst reducing environmental impact.
The financial case for proper condensate recovery proves compelling across virtually every application. Facilities that implement effective condensate return systems routinely achieve fuel savings of 10-15%, reduce water consumption by 60-80%, and extend boiler service life significantly. These benefits accumulate year after year, transforming initial system investments into ongoing operational advantages that strengthen competitive positioning.
What Is Condensate and Why Does It Form?
The Science Behind Condensate Formation
When steam delivers heat to radiators, heat exchangers, or process equipment, it transfers energy and cools. This cooling causes the steam to condense back into liquid water - a fundamental phase change governed by temperature and pressure relationships. The condensate return process begins the moment steam gives up its latent heat, creating hot water that retains substantial thermal energy.
This condensate differs significantly from ordinary cold water. Temperatures typically range from 60°C to 100°C depending on system pressure and design, representing approximately 10-30% of the original energy content in the steam. Discarding this hot water means the boiler must work harder to heat cold makeup water from mains temperature (typically 10-15°C) back up to operating conditions - an enormous waste of energy that proper condensate return eliminates.
The pressure in any steam system determines the exact condensation temperature. In a low-pressure heating system operating at 0.5 bar gauge, condensate forms at roughly 112°C. Higher pressure systems produce even hotter condensate with greater energy content. Flash steam can also form when high-pressure condensate suddenly encounters lower pressure in return lines, representing another energy recovery opportunity in well-designed systems that incorporate appropriate expansion vessels and pressure management equipment.
The Value Hidden in Condensate
Every litre of condensate sent to drain takes with it not just heat energy, but also treated water that cost money to purify and condition. Boiler feedwater requires chemical treatment to prevent scale formation and corrosion - treatments that represent significant ongoing expenses. When facilities recover and return condensate, they reuse water that has already been treated, softened, and heated, eliminating redundant processing costs.
Consider a medium-sized commercial building with a 500kW boiler running 12 hours daily. Without condensate return, this system might consume 15,000 litres of fresh makeup water weekly. That water must be treated, heated from 10°C to 80°C, and the associated chemicals and energy costs accumulate quickly. Recovering even 70% of that condensate eliminates 10,500 litres of makeup water demand weekly - a substantial reduction in both water bills and treatment costs that compounds into significant annual savings.
The environmental case proves equally compelling for organisations focused on sustainability. Water discharge often incurs sewerage charges, and many facilities face increasing scrutiny over water consumption from regulators and stakeholders alike. Condensate recovery directly addresses both concerns whilst simultaneously cutting carbon emissions through reduced fuel consumption, supporting corporate environmental commitments and regulatory compliance objectives.
How Condensate Return Systems Work
Basic System Components
A functional condensate return system comprises several key elements working together to capture, collect, and return valuable hot water to the boiler. Condensate receivers or collection tanks gather the liquid from multiple condensate lines throughout the facility. These vessels must be sized appropriately for the system's condensate production rate and provide adequate storage during peak demand periods when multiple pieces of equipment discharge simultaneously.
Grundfos pumps and similar high-quality condensate return equipment then move the collected liquid back to the boiler feedwater system. Pump selection depends on flow rates, pressure requirements, and temperature conditions that vary significantly between applications. Many systems use duplex pump sets with alternating operation to ensure reliability and provide backup capacity - critical considerations for facilities where heating interruption causes serious operational problems.
Steam traps play a crucial role by automatically draining condensate from steam spaces whilst preventing live steam from escaping. Failed steam traps either waste live steam (if they stick open) or cause condensate backup (if they fail closed). Both scenarios damage efficiency and equipment, making regular trap inspection and maintenance essential for system performance. Proper piping design ensures condensate flows smoothly without creating water hammer or backpressure problems that reduce system effectiveness.
Gravity Vs Pumped Return Systems
In some fortunate installations, gravity provides sufficient force to return condensate to the boiler without mechanical assistance. This requires the condensate collection points to sit physically higher than the boiler feedwater tank, with adequate elevation difference to overcome friction losses in the return piping. Gravity systems offer simplicity, reliability, and zero pumping energy consumption, but they prove viable only when building geometry permits - a constraint that limits their application in most facilities.
Most commercial and industrial facilities require pumped condensate return systems to overcome physical constraints. The boiler room often sits in a basement whilst condensate forms in equipment scattered across multiple floors throughout the building. Pumps overcome the elevation difference and push condensate back to the feedwater system against system pressure, enabling recovery regardless of facility layout.
High-quality equipment designed specifically for condensate service can handle the elevated temperatures and potential flash steam conditions that challenge standard water pumps. Condensate pumps must cope with temperatures approaching 100°C and occasional vapour entrainment that would cause cavitation in conventional equipment. Some larger systems employ hybrid approaches, using gravity collection where possible and pumping only where necessary to minimise energy consumption whilst maintaining reliable condensate recovery throughout the facility.
The Direct Impact on Boiler Efficiency
Energy Recovery Through Condensate Return
The efficiency gains from proper condensate return prove substantial and measurable in virtually every application. Consider the energy required to heat water from mains temperature (approximately 10°C) to typical boiler operating temperature (80°C). This requires roughly 293 kJ per litre - energy that must come from fuel consumption. Now consider that returned condensate might already be at 90°C, requiring only minimal additional heating to reach operating temperature.
Real UK examples from commercial buildings demonstrate fuel savings of 10-15% purely from implementing effective condensate recovery. A facility burning 50,000 litres of heating oil annually at £0.60 per litre spends £30,000 on fuel. A 12% reduction through condensate return saves £3,600 yearly - enough to justify significant system improvements with payback periods under two years. Commercial Remeha boilers and similar high-efficiency equipment benefit particularly from proper condensate return, as their advanced heat exchangers depend on consistent feedwater quality for optimal performance. These aren't theoretical calculations but verified results from monitored installations across diverse applications.
The exact savings depend on condensate temperature, return rate, and makeup water temperature in each specific application. Winter operation shows even greater benefits as mains water temperature drops to 5-8°C in many UK regions. The colder the makeup water, the more valuable the hot condensate becomes - making condensate return particularly valuable during the heating season when boilers operate most intensively.
Reduced Makeup Water Requirements
Water costs extend beyond the volumetric supply charge that appears on utility bills. Sewerage charges often equal or exceed water supply costs, effectively doubling the price per litre of water consumed. When facilities dump condensate to drain, they pay to supply the water initially, then pay again to discharge it - a double expense that proper condensate return eliminates entirely.
Treatment costs add another layer of expense that condensate recovery addresses. Boiler feedwater requires softening or other treatment to prevent scale formation that reduces heat transfer efficiency. Chemical inhibitors protect against corrosion that shortens equipment life. These treatments cost money for both the chemicals themselves and the equipment to apply them. Recovered condensate has already been treated, so returning it to the boiler eliminates redundant treatment of fresh makeup water.
Systems with inadequate condensate return also require increased boiler blowdown to manage total dissolved solids (TDS) levels. Fresh makeup water introduces minerals and impurities that concentrate in the boiler water through evaporation. Higher makeup water volumes mean higher TDS levels and more frequent blowdown - wasting both water and heat energy in a cycle that compounds costs continuously.
Boiler Longevity and Maintenance Benefits
Beyond immediate fuel and water savings, proper condensate return extends boiler life and reduces maintenance costs over the equipment's service life. Preheated feedwater reduces thermal shock when entering the boiler, decreasing stress on tubes and pressure vessels. This thermal cycling causes fatigue over time, and minimising temperature differentials extends equipment life significantly - potentially adding years to boiler service before replacement becomes necessary.
Scale formation accelerates when boilers process large volumes of fresh makeup water containing dissolved minerals. Even treated water contains some mineral content, and these minerals concentrate through evaporation during normal operation. Recovered condensate contains minimal dissolved solids, reducing scale formation rates and keeping heat transfer surfaces cleaner. National Pumps and Boilers supplies the complete range of water treatment and condensate management equipment needed to maintain optimal boiler water quality.
Corrosion problems also diminish with effective condensate recovery. Oxygen content in makeup water promotes corrosion in boiler tubes and feedwater systems, gradually degrading components and reducing equipment life. Condensate contains far less dissolved oxygen, particularly when properly deaerated before return. Lower oxygen levels mean slower corrosion rates and longer equipment life - benefits that accumulate over years of operation.
Common Condensate System Problems
Condensate Loss and Leakage
Many facilities recover less condensate than they should due to leaks, failed steam traps, and system deficiencies that develop over time. A comprehensive audit often reveals that 20-40% of condensate never makes it back to the boiler - escaping through various failure points or deliberately dumped due to contamination concerns that proper treatment could address.
Steam trap failures represent the most common cause of condensate loss in operating systems. Traps that fail open waste live steam directly to drain, whilst traps that fail closed cause condensate to back up and potentially flood steam spaces. Regular steam trap testing and replacement programmes prove essential for maintaining efficient condensate return, yet many facilities lack systematic trap maintenance and allow failures to persist for months or years before discovery.
Leaks in condensate return piping often go unnoticed because the escaping fluid appears as just hot water, not dramatic steam plumes that attract immediate attention. Small drips from corroded pipes, leaking flanges, or failed gaskets can cumulatively waste thousands of litres weekly without obvious symptoms. Thermal imaging surveys help identify these hidden losses by revealing temperature anomalies that indicate leak locations.
Contamination Issues
Condensate quality determines whether it can be safely returned to the boiler without causing damage. Process equipment can introduce contaminants - oil from compressors, chemicals from manufacturing processes, or other substances that would damage boiler tubes or controls if allowed into the feedwater system. When condensate becomes contaminated, facilities often have no choice but to dump it and use fresh makeup water instead.
Oil contamination proves particularly problematic for boiler operation. Even small amounts of oil in boiler feedwater can cause foaming, carryover, and deposits on heat transfer surfaces that reduce efficiency and damage components. Sources include leaking heat exchanger tubes in oil-heated equipment, compressor seal failures, or process contamination. Oil detection systems and separation equipment help manage this issue, enabling recovery of condensate that would otherwise require disposal.
Some facilities unnecessarily reject condensate due to contamination concerns that proper treatment could address effectively. Condensate polishing systems, separators, and monitoring equipment allow safe recovery of condensate that would otherwise be wasted. The investment in treatment equipment often pays back quickly through eliminated makeup water costs - particularly for facilities with high condensate volumes or expensive water treatment requirements.
System Design Flaws
Many condensate return systems suffer from design deficiencies that limit performance below potential. Undersized return piping creates backpressure that prevents proper drainage from steam traps and equipment throughout the system. This backpressure causes condensate to accumulate in steam spaces, reducing heat transfer efficiency and potentially causing water hammer that damages piping and equipment.
Pump selection errors lead to operational problems that compromise system reliability. Pumps sized too small cannot handle peak condensate loads, causing overflows and losses during high-demand periods. Pumps sized too large or operating at excessive speeds create cavitation problems, particularly when handling hot condensate near its boiling point. Wilo pumps designed for condensate service must be carefully matched to system requirements for reliable operation.
Water hammer represents both a symptom of design problems and a cause of system damage that escalates over time. Rapid condensation of steam pockets in condensate lines creates shock waves that damage piping, valves, and equipment throughout the system. Proper piping design with adequate drainage, appropriate pitch, and correct trap selection prevents water hammer formation - but correcting these issues in existing systems often requires significant modification.
Optimising Your Condensate Return System
System Assessment and Auditing
Improving condensate return begins with understanding current performance through systematic measurement. Measuring actual condensate return rates against theoretical production reveals how much the system loses through various failure modes. Flow meters on makeup water lines and condensate return lines provide the data needed for accurate assessment of recovery efficiency.
Temperature monitoring at key points shows where heat energy escapes from the system. Condensate returning at 90°C delivers far more value than condensate at 60°C - temperature drops indicate problems like excessive venting, leaks, or poor insulation on return lines that waste recovered energy. Identifying these issues enables targeted improvements that maximise benefit from system upgrades.
Steam trap surveys identify failed traps requiring replacement before they waste significant energy. Ultrasonic testing equipment detects traps passing live steam or blocked with condensate that visual inspection would miss. A facility with 100 steam traps might discover 15-25 failures during a comprehensive survey - each failure wasting energy and condensate continuously until corrected. Regular surveys prevent these losses from accumulating undetected.
Equipment Selection and Sizing
Upgrading condensate return systems requires careful equipment selection matched to specific operating conditions. Pumps must handle the elevated temperatures, potential flash steam, and varying flow rates characteristic of condensate service. Lowara pumps designed for high-temperature applications provide reliable service in demanding condensate environments where standard pumps would fail.
Receiver tank sizing depends on condensate production rates and desired pump cycle times that balance equipment life against system responsiveness. Undersized tanks cause excessive pump cycling that accelerates wear, whilst oversized tanks waste space and capital. A properly sized receiver provides 3-5 minutes of storage at average condensate flow rates, allowing reasonable pump run times without excessive cycling.
Steam trap selection involves matching trap types to specific applications throughout the system. Float and thermostatic traps work well for most heating equipment. Inverted bucket traps suit applications with dirt or scale in the condensate. Thermodynamic traps handle high-pressure applications effectively. Using the right trap type for each location improves reliability and efficiency whilst reducing maintenance requirements.
Maintenance Best Practices
Sustaining condensate return performance requires ongoing maintenance that prevents degradation over time. Quarterly steam trap surveys catch failures before they waste excessive energy - testing takes minutes per trap using ultrasonic or temperature-based methods, and the energy savings from catching failures early far exceeds testing costs. Systematic trap maintenance programmes pay for themselves many times over through prevented losses.
Pump maintenance prevents unexpected failures that could dump condensate for days before discovery in systems lacking monitoring. Seal replacement, bearing lubrication, and motor checks should follow manufacturer recommendations for the specific equipment installed. Keeping a spare pump assembly on hand minimises downtime if failures occur - particularly important for facilities where heating interruption causes serious operational problems.
Water quality testing verifies that returned condensate meets boiler feedwater requirements and won't cause damage. Monthly testing of pH, conductivity, and oil content identifies contamination issues before they damage boiler components. Trending these measurements over time reveals developing problems early, enabling intervention before equipment damage occurs. Quality DHW pumps and condensate handling equipment from reputable manufacturers simplify maintenance through robust construction and accessible service points. Proper documentation supports both maintenance planning and regulatory compliance requirements.
The Financial Case for Condensate Recovery
Calculating Return on Investment
Energy cost savings from recovered heat typically represent the largest financial benefit of condensate return improvements. Quantifying these savings requires measuring current condensate losses and calculating the fuel cost of heating replacement makeup water. For most facilities, this calculation reveals substantial savings potential - often enough to justify significant system improvements with attractive payback periods.
Water and sewerage cost reductions add to the financial case for condensate recovery. Central heating systems and larger commercial installations consume significant water volumes when condensate goes to drain. Recovering this water eliminates both supply charges and discharge costs, doubling the effective savings per litre compared to fuel savings alone.
Chemical treatment savings complete the financial picture for condensate recovery projects. Every litre of recovered condensate replaces a litre of fresh makeup water that would require treatment. Treatment chemicals, equipment maintenance, and operator time all decrease proportionally with reduced makeup water demand. These savings prove particularly significant for facilities with demanding water quality requirements or expensive treatment processes.
Incentives and Compliance Considerations
Energy efficiency schemes increasingly support condensate recovery improvements as part of broader decarbonisation efforts. Various programmes offer grants, loans, or tax incentives for projects that reduce energy consumption and carbon emissions. Condensate recovery projects often qualify for support under these schemes, improving project economics and accelerating payback periods.
Environmental regulations affecting water discharge continue tightening across the UK, making condensate recovery increasingly attractive from a compliance perspective. Facilities discharging large volumes of hot water may face restrictions or additional treatment requirements that condensate recovery eliminates entirely. Proactive investment in recovery systems positions facilities favourably as regulations evolve.
Carbon reduction targets drive increasing attention to condensate recovery as organisations work toward net-zero commitments. The fuel savings from condensate return translate directly into reduced carbon emissions that support corporate sustainability goals. Documenting these reductions provides evidence for sustainability reporting and demonstrates commitment to environmental responsibility. For assistance with pump valves and other condensate system components, professional suppliers offer technical guidance matched to specific application requirements.
Conclusion
Condensate return represents a proven opportunity for improving boiler efficiency that delivers measurable benefits across virtually every commercial and industrial application. The combination of fuel savings, water conservation, reduced treatment costs, and extended equipment life creates a compelling financial case for investment in proper condensate recovery systems. Facilities that implement effective condensate return routinely achieve payback periods under two years whilst positioning themselves favourably for tightening environmental regulations.
The technical solutions for condensate recovery are well-established and reliable when properly specified and maintained. Quality pumps, appropriately sized receivers, correctly selected steam traps, and systematic maintenance programmes ensure consistent performance over years of operation. The key lies in proper system design from the outset and ongoing attention to maintenance that prevents gradual degradation.
For facilities seeking to improve condensate return performance, professional assessment identifies specific opportunities and quantifies potential savings. Whether upgrading existing systems or specifying new installations, expert guidance ensures equipment matches application requirements and delivers expected benefits. Contact Us to discuss condensate return improvements and discover how proper system design can reduce operating costs whilst supporting environmental objectives.
