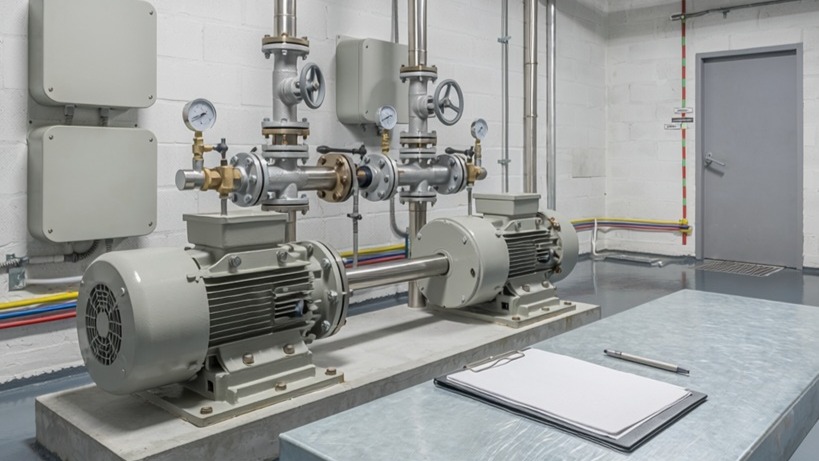

Pump System Planning for Commercial Sites That Cannot Afford Downtime

A duty standby pump system starts with knowing which services would fail first, which pump positions have credible fallback, and what information would be needed before a replacement enquiry could move quickly. It is not a generic buying exercise. A site that cannot afford downtime needs a continuity map before it needs a basket.

The map should show more than installed assets. It should separate the pump that is currently doing the work, any standby pump available to protect the duty, the building area served, the accepted interruption window and the evidence needed to compare published product data. Without that structure, the first urgent phone call often begins with a symptom, an old invoice or a partial nameplate, none of which proves what the system now requires.

HSE guidance on work equipment maintenance is useful because it keeps the boundary clear: maintenance should be planned, safe, competent and properly recorded. For a product supplier, that does not create a maintenance role. For a facilities team, it does show why pump records need to be reliable before pressure rises.

Draw the Continuity Route First

The first pass through the plant room should follow the service, not the shelf of spares. A heating circulator serving a lightly occupied store has a different continuity value from a pump supporting tenant heating, domestic hot water circulation, frost protection or a process-support loop. The same pump size can carry very different consequences.

Start each record with the service name, served area, normal operating period and first visible business effect if circulation stops. A school may need morning heat-up before pupils arrive. A hotel may notice a domestic hot water circulation problem quickly. A factory office may tolerate a short heating interruption, while an adjacent process area may not. These are service facts, not fault diagnoses.

The record should then state whether the duty is single, duty and standby, twin-head, or part of a wider pumped arrangement. The phrase standby pump should never be treated as proof of continuity by itself. It only matters if the alternative pump is available, correctly valved, understood by the responsible team and able to carry the required duty when called.

Locate Single Points of Failure

A continuity map becomes useful when it exposes the single points that can stop the service. The obvious single point may be one pump with no alternative. Less obvious single points include a failed isolating valve, a shared electrical supply, a control panel that will not permit changeover, a locked plant room, a missing gasket set or a product reference that nobody can confirm.

For each high-consequence pump, ask four questions:

• What stops if this pump is unavailable?
• What else has to work before another pump can protect the service?
• What information would be needed before a replacement product could be checked?
• Who owns the decision to release the interruption window?

That sequence keeps the discussion operational. It avoids pretending that a product page can confirm site suitability, but it also prevents product sourcing from being delayed by basic missing evidence.

A twin product can support a continuity strategy only where the site requirement has been confirmed. The DAB Evoplus D 40/220.32 M twin pump set is listed by NPB as SKU 60150954 and described as a twin circulator pump set for commercial heating applications. The related DAB data sheet identifies the EVOPLUS D 40/220.32 M with DN32 pump connections, 220 mm length and a 1 x 220-240 V, 50 Hz supply. Those details are useful comparison points, not evidence that the product suits an unknown circuit.

Treat Standby as Evidence, Not Reassurance

Standby arrangements fail quietly when records are loose. A second pump may be isolated, left in manual, held by a fault, connected to the same vulnerable supply, or never exercised in the condition where it would be needed. The asset register may still say duty/standby, but the building may not have a usable fallback.

The continuity record should therefore show the last known alternation or exercise evidence, duty and standby state, valve positions, fault indication, electrical supply, control mode and any instruction needed to avoid confusion during changeover. Xylem duty-standby guidance shows the general principle of two pumps being operated alternately for reliability. That principle still depends on the installed controls, valves and competent maintenance arrangements on the actual site.

This is where commercial heating system resilience becomes practical. It is not a promise that downtime will never happen. It is the ability to say, before the event, what service is protected, what fallback exists, what could block the fallback and which data must be ready for purchasing if replacement becomes necessary.

Keep Product Checks Behind the Duty Record

Product comparison should start only after the duty record is strong enough. DAB pump selection guidance places flow, head, liquid and operating conditions at the centre of pump choice. Those fields matter because a familiar body size or connection does not prove the current duty.

For smaller commercial heating duties, a listing such as Grundfos Magna1 25/60 shows the type of published data that can be compared with a site record: product number 99221217, G 1 1/2 connection, PN10 pressure rating, 180 mm port-to-port length, water as pumped liquid, 1 x 230 V supply and a liquid temperature range from -10 to 110 deg C. These are product facts. The responsible project team still has to confirm duty, liquid, pressure, controls and installation context.

Another current product route is the Wilo Yonos MAXO 25/0,5-10 PN10 single pump, listed as SKU 2120640. The Wilo data sheet gives 1~230 V supply, PN10 maximum operating pressure, 180 mm port-to-port length and G 1 1/2 connections for the 25/0,5-10 PN10 model. Again, those fields help comparison only after the service requirement is known.

Time the Changeover Before the Order Is Urgent

The wider commercial circulators category is most useful once the continuity map has narrowed the enquiry. It lets a buyer see current pump families and listed product routes without turning browsing into selection.

The best product choice can still fail the continuity plan if the changeover cannot happen inside the available window. The map should record isolation condition, drainage route, electrical isolation, access, lifting space, insulation, pipe movement, gasket or union needs and any connected service that would also be interrupted.

This does not mean writing a method statement in the article or asking procurement to decide safe work. It means giving the competent people and buyers the same picture before the site is under pressure. If an isolating valve is known to pass, if access needs a permit, or if a riser serves an area with limited tolerance, the decision should appear in the plan before the pump fails.

The changeover note should also define what can be bought quickly and what cannot. A standard stocked item may be simple to source, while a product tied to unusual connections, controls or a twin arrangement may need earlier availability checks. That lead-time exposure belongs in the continuity map because time is part of resilience.

Make the Supplier Enquiry Order-Ready

Once the continuity map has narrowed the buying question, National Pumps and Boilers is the route for product enquiries about current catalogue options, published specification details, prices, ordering, delivery and replacement-product information. The enquiry is strongest when it arrives with the confirmed service, existing model, duty evidence, connection details, electrical supply, control requirement, access constraints and required timescale.

The supplier question should stay bounded. It should ask what is available, what the published fields say and what ordering route applies. It should not ask the supplier to diagnose the failure, prove standby operation, design the circuit, install the equipment, commission the system or decide whether the interruption is safe.

The final continuity information is therefore concise: service protected, allowed interruption, duty and standby position, known blockers, confirmed product fields, delivery need and named owner for the release decision. If those facts are ready, a pump issue begins with control of the service. If they are missing, downtime starts by consuming time that the site already knew it could not spare.
