What is a Heat Exchanger and Its Role in Commercial Heating Systems?

If you’ve ever opened up a boiler or worked on a large heating system, you’ll know that the bit doing the real graft is the heat exchanger. It’s where the heat actually moves from one place to another.
In a commercial heating system, the heat exchanger is the bridge, taking the energy produced by the boiler, heat pump, or another source, and handing it over to the system that uses it.

When a heat exchanger is designed right, everything runs smoothly. When it’s not, you’ll get uneven heating, short cycling, or a boiler that never seems to hit its setpoint. So, let’s look at what it does, the different types you’ll come across, and why they matter so much on a commercial job.

The Basics: What a Heat Exchanger Actually Does

A heat exchanger moves heat between two fluids, usually water and water, or water and air, without them ever touching.
Imagine a plate separating two channels: hot fluid on one side, cooler fluid on the other. The metal plate transfers the heat, but the fluids never mix.

That separation is vital in commercial plumbing systems because it stops dirt, sludge, or chemicals from one side from affecting the other.
For example, in a big building, the boiler circuit and the underfloor circuit might use different water treatments or pressures. The heat exchanger keeps both sides happy and working safely.

In short, its job is simple:
Take heat from A, give it to B, efficiently and safely.

Where You’ll Find Heat Exchangers

You’ll see commercial heat exchangers in all sorts of setups:

Inside condensing boilers, transferring heat from flue gases to water.
Between primary and secondary heating circuits.
In domestic hot water DHW generation, replace storage tanks.
Linking renewable sources such as heat pumps or solar systems to the existing plant.
On district heating systems, separating the main network from local circuits.

It doesn’t matter whether it’s a small office block or a hospital plant room; if there’s heat moving between systems, there’s a heat exchanger somewhere in the middle.

Main Types You’ll Come Across on Site

Every engineer has a favourite type to work with, usually depending on experience. But let’s run through the main ones you’ll meet in commercial heating.

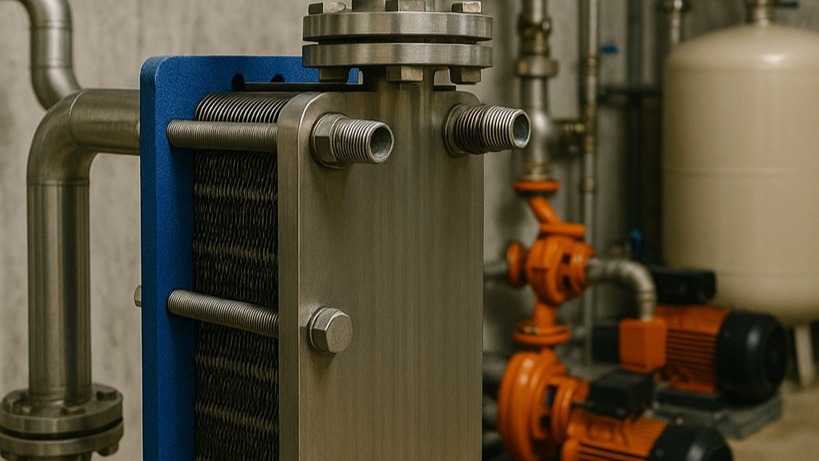

1. Plate Heat Exchangers

These are the go-to options on most modern systems. They use stacks of thin, corrugated metal plates clamped together. One fluid runs through the odd plates, the other through the even ones. The corrugation increases surface area and turbulence, which means excellent heat transfer.

They’re compact, efficient, and easy to strip down and clean, ideal for hot water generation or separating boiler and heating circuits.
If you’re working with Pressurisation Units or Expansion Vessels, these exchangers fit right into that setup.

2. Brazed Plate Heat Exchangers

Similar idea, but the plates are permanently sealed together with copper or nickel.
No gaskets, no maintenance, perfect for heat pump systems or closed loops where the water’s clean.
They’re small, affordable, and can handle high pressures.
Once they foul up, though, that’s it; replacement is your only option.

3. Shell and Tube Heat Exchangers

Old-school but tough as nails. You’ll find these in plant rooms that have been running for decades. They’re basically bundles of tubes inside a shell; one fluid flows through the tubes, the other around them.

They handle dirtier fluids, pressure fluctuations, and high temperatures without issue. If you’re maintaining a hospital or industrial plant, you’ve probably worked on one.

4. Air or Finned Coil Exchangers

Used in air handling units, fan coils, or refrigeration systems. These transfer heat between air and water, a slightly different world, but the same principles apply.

How Heat Exchangers Fit into a Commercial System

On paper, a commercial system might look simple: boiler, pumps, emitters, job done. But once you start linking multiple circuits or technologies, the heat exchanger becomes the unsung hero.

Let’s take a few real examples:

Example 1: Separating Primary and Secondary Circuits

Say you’ve got a gas boiler loop and a low-temperature underfloor loop. You can’t just connect them directly; the flow rates and pressures won’t match.
A plate heat exchanger sits between them, transferring heat across while keeping each circuit independent. It also means you can treat or flush each side separately.

Example 2: District Heating

In a district heating setup, you’ll have one big central plant feeding several buildings. Each building uses a commercial heat exchanger to take energy from the main loop into its own heating and hot water systems.
That way, if one building develops a fault or dirty water, it doesn’t drag the rest down.

Example 3: Integrating Renewables

When you bring a ground source heat pump or air source unit into an older plant, a heat exchanger ensures the system’s protected. The low-temperature side stays efficient, while the legacy heating circuit gets the boost it needs.
If you’ve ever worked on a retrofit, you’ll know the exchanger is what makes that mix-and-match approach possible.

Why Getting the Heat Exchanger Right Matters

You can have the best boilers, pumps, and controls on the market, but if the heat exchanger’s undersized, dirty, or poorly matched, the system will struggle.

Common symptoms of poor selection or design:

The system never hits flow temperature.
Pumps run flat out all day.
Energy bills creep up despite new equipment.
Return temperatures are too high for condensing boilers to condense.

Selecting the right commercial heat exchanger means matching it to the load, flow rate, and temperature difference ΔT.
If you’re unsure, talk to manufacturers like Armstrong or Lowara, both offer detailed sizing support and high-efficiency plate models.

Selecting the Right Size and Type

When you’re choosing a heat exchanger, think about what the system actually needs day-to-day, not just the theoretical peak load. Oversizing is as bad as undersizing.

Here’s what to check:

Temperature Differential ΔT: A bigger ΔT means smaller equipment.
Flow Rate: Match the pump’s capacity to avoid cavitation or poor heat transfer.
Pressure Drop: Keep it reasonable; too high, and you’ll hammer the circulators.
Fluid Type: Watch out for glycol or treated water; it affects performance.
Maintenance Access: Always install with isolation valves and space to remove plates for cleaning.

Pro tip: Always check the heat exchanger orientation. Counterflow fluids in opposite directions gives far better efficiency than parallel flow.

Routine Maintenance: Keeping Things Efficient

Heat exchangers are pretty reliable, but they’re not maintenance-free.
Over time, they collect scale, sludge, and magnetite, especially if the water quality isn’t perfect. Even a thin layer of dirt can cut efficiency by 10–15%.

What to include in your maintenance routine:

Check the temperature difference across the exchanger. A narrowing ΔT usually means fouling.
Inspect for leaks, gasket wear, or pressure loss.
Test system water annually following BS 7593.
Clean or flush as needed. Gasketed plates can be taken apart; brazed plates need chemical cleaning.
Use Flamco air and dirt separators upstream to keep contaminants out.
Fit Mikrofill pressurisation units for consistent system pressure.

Good maintenance keeps energy bills low and helps boilers and pumps work in their best efficiency range.

Common Issues You’ll Run Into

If you work with heat exchangers long enough, you’ll start to recognise a few repeat offenders.

1. Fouling

Sludge, limescale, or biological growth block passages and reduce heat transfer. You’ll notice lower outlet temperatures or higher pressure drops.
A quick chemical clean often brings performance back.

2. Cross Contamination

Usually caused by gasket failure or corrosion between plates. It’s serious; one side might lose pressure or become contaminated.
If this happens, isolate and pressure test both circuits immediately.

3. Wrong Flow Direction

Believe it or not, this still happens. Always double-check arrows on the plates and headers. Counterflow is essential for efficiency.

4. Pump Imbalance

If the primary pump outperforms the secondary, the flow through the exchanger becomes unstable.
Using variable-speed pumps like Wilo Stratos MAXO Wilo or Grundfos MAGNA3 Grundfos helps balance everything automatically.

Case Study: Office Retrofit in Manchester

Last year, a contractor was upgrading a 1990s office block with new condensing boilers. The old heat exchangers were oversized shell-and-tube types that hadn’t been cleaned in years.
Flow rates were all over the place, and the boilers kept short-cycling.

The solution was a pair of brazed plate heat exchangers matched to the new system load. They took up a third of the space, improved temperature control, and reduced return water temperatures by around 12°C.
After commissioning, gas use dropped by nearly 30%.
That’s the kind of result you get when you size and integrate the exchanger properly.

Safety and Compliance

Beyond performance, heat exchangers also keep systems compliant and safe.
For domestic hot water, they’re a frontline defence against Legionella, as they allow instant heating and minimal storage.

For high-rise systems, they isolate circuits running at different pressures, which stops lower floors from being over-pressurised.

All work should follow:

Building Regulations Part L for energy performance.
HSG274 Part 2 for water safety.
CIBSE Guide B for plant design and hydraulic separation.

Keeping those boxes ticked avoids nasty surprises during inspection or insurance audits.

Improving Efficiency: The Small Things That Add Up

Efficiency isn’t just about the big-ticket items. Often it’s the small details that make a difference.

Quick wins:

Insulate pipework on both sides of the exchanger.
Monitor delta-T regularly; don’t wait for complaints to start investigating.
Flush and dose the system annually.
Upgrade to smarter pumps that adapt flow to demand.
Check sensor placement; poor readings can cause incorrect modulation.

If you’re running mixed technology, make sure controls are integrated so that boilers, pumps, and exchangers talk to each other properly through the BMS.

When to Replace a Heat Exchanger

Even well-looked-after equipment eventually wears out.
You’ll know it’s time to replace when:

Cleaning no longer restores performance.
Gaskets keep leaking.
Efficiency drops despite balanced flow.
Corrosion is visible on plates or shells.

New models from Ebara or Reflex are more compact, efficient, and better suited to low-carbon systems.
Swapping an old shell-and-tube for a modern plate unit can free up plant room space and cut running costs immediately.

The Direction the Industry Is Heading

Heat exchangers are becoming smarter and more integrated.
We’re starting to see compact micro-plate exchangers with built-in sensors that send data straight to the BMS, allowing for predictive maintenance before a failure happens.

Some new models even include self-cleaning features that use small pressure pulses to prevent fouling.
It’s not science fiction; it’s already appearing in high-end plant rooms across the UK.

With the government’s net-zero push, expect more systems combining heat pumps, solar, and thermal storage. In every one of those setups, the heat exchanger remains a central piece of kit.

Final Thoughts from an Engineer’s Point of View

If there’s one thing every heating engineer learns early, it’s that most plant room problems trace back to the basics, and the heat exchanger is one of them.
Get it right, and everything else works better: the pumps, the controls, and even the comfort levels inside the building.

So when you’re planning your next upgrade or troubleshooting poor efficiency, take a close look at how the heat’s being transferred.
If in doubt, talk to the team at National Pumps and Boilers, their technical support can help you match the right exchanger to your system, whether it’s for a pressurised heating circuit, district network, or heat pump retrofit.

And remember: a clean, well-sized heat exchanger isn’t just a component. It’s the reason your system runs efficiently day in and day out.

For expert help or replacement units, get in touch with National Pumps and Boilers for practical advice and product options.
