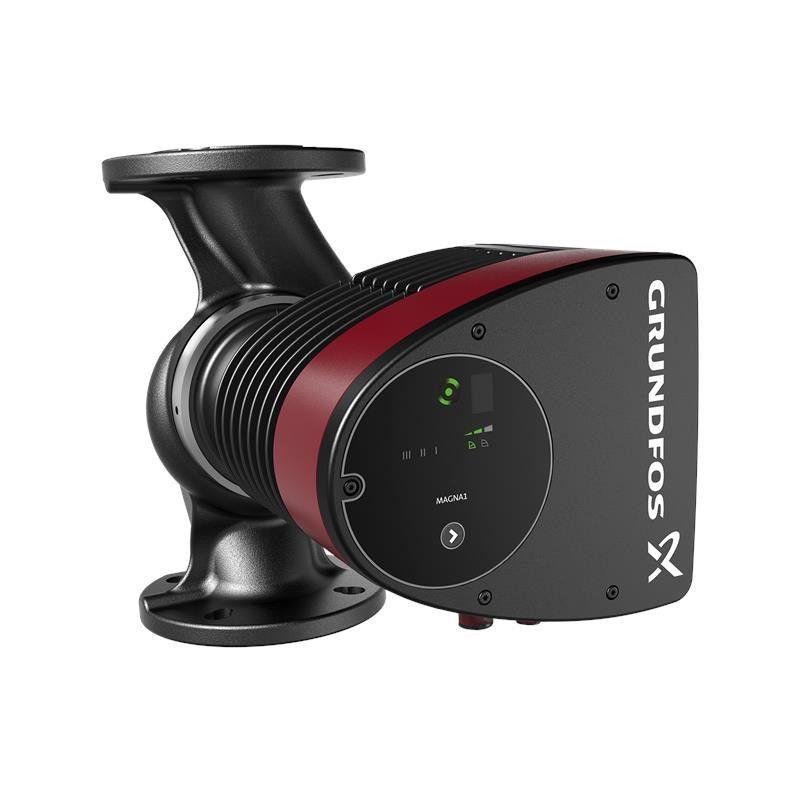

Grundfos MAGNA1 65-40

Welcome to the future of commercial heating and cooling efficiency. The Grundfos MAGNA1 65-40 F is a smart, robust, and energy-efficient circulating pump. It reduces operational costs and enhances large-scale HVAC or hot water systems, delivering tangible value to your business.

Product Overview & Benefits

At National Pumps and Boilers, we offer the Grundfos MAGNA1 65-40 F. This Grundfos pump is a strategic investment for heating and AC systems, excelling in commercial/domestic heating, AC, DHW recirculation, and district/industrial heating.

It features an IE5 efficiency motor for lower energy bills and optimal fluid movement. Integrated electronic control adapts to system demands, ensuring peak efficiency.

Built for durability, its robust cast iron body, stainless steel shaft, and high-quality bearings ensure long life and wear resistance. This commercial circulator reliably powers critical systems.

Installation is straightforward with its compact design and standard connections. Our flanges and unions offer robust connections. A user-friendly interface and self-venting simplify commissioning. For system integration, it offers Modbus RTU & BACnet MS/TP communication for seamless BMS connection and remote monitoring. Explore our pump valves.

Key Advantages:

• Significant Energy Savings: IE5 motor dramatically cuts electricity consumption.
• Optimised System Performance: Intelligent controls adapt to demand.
• Exceptional Durability: Robust construction ensures long, reliable service.
• Simplified Installation: Compact design and standard connections.
• Reduced Maintenance: Self-venting minimises upkeep.
• Quiet Operation: Low noise levels.
• BMS Compatibility: Modbus RTU & BACnet MS/TP communication.

Technical Specifications

The Grundfos MAGNA1 65-40 F is engineered for precision and reliability. Here are its core technical details:

Product Identification

• SKU: 99221382
• Manufacturer: Grundfos Pumps

Pump Data

• Connection: DN65 Flanged
• Suitable for: Water circulation in heating and AC Systems, Commercial air conditioning, Commercial heating, Domestic hot water recirculation, Domestic heating, District cooling, District heating, Industrial heating.

Electrical Data

• Rated Voltage: 230 V
• Frequency: 50Hz
• Rated Current: 5.9A
• Protection Class: IP44
• Insulation Class: F
• Elec. Connection: Plug
• Sound Pressure Level: ≤52dB(A)

Communication

• Via: Fault Relay & Digital Start/Stop
• BMS Compatibility: Modbus RTU & BACnet MS/TP

Materials

• Bush Bearing: Carbon, resin impregnated
• Mech. Seal Ball ½": Aluminum oxide
• Casing Plate: Stainless steel
• Motor Housing: Aluminium
• O-Rings: EDPM
• Pump Housing: Cast Iron
• Impeller: PPS
• Neck Ring: Stainless steel
• Rotor Can: Stainless steel
• Shaft: Stainless Steel
• Control box: Polycarbonate

For comprehensive performance curves, detailed dimensions, and installation guidelines, please refer to the official Technical Data Sheet and Installation & Operating Manual.

Why Choose National Pumps and Boilers?

At National Pumps and Boilers, we're your dedicated partner for efficient, reliable commercial and industrial systems. Our UK market expertise in pumps and boilers is second to none. We offer competitive pricing, installation, and maintenance contracts, ensuring your peace of mind. Enjoy free shipping on orders over £100 and next-day delivery before 10:30 am on all GRUNDFOS products.

Contact Us

Ready to upgrade your commercial system with the Grundfos MAGNA1 65-40 F? Get in touch with our friendly team today for expert advice or to request a personalised quote.

Call Us: 0333 3583060 Email Address: info@nationalpumpsandboilers.co.uk
