£1,138.66 (Inc. VAT)
£948.88 (Ex. VAT)
Suitable for

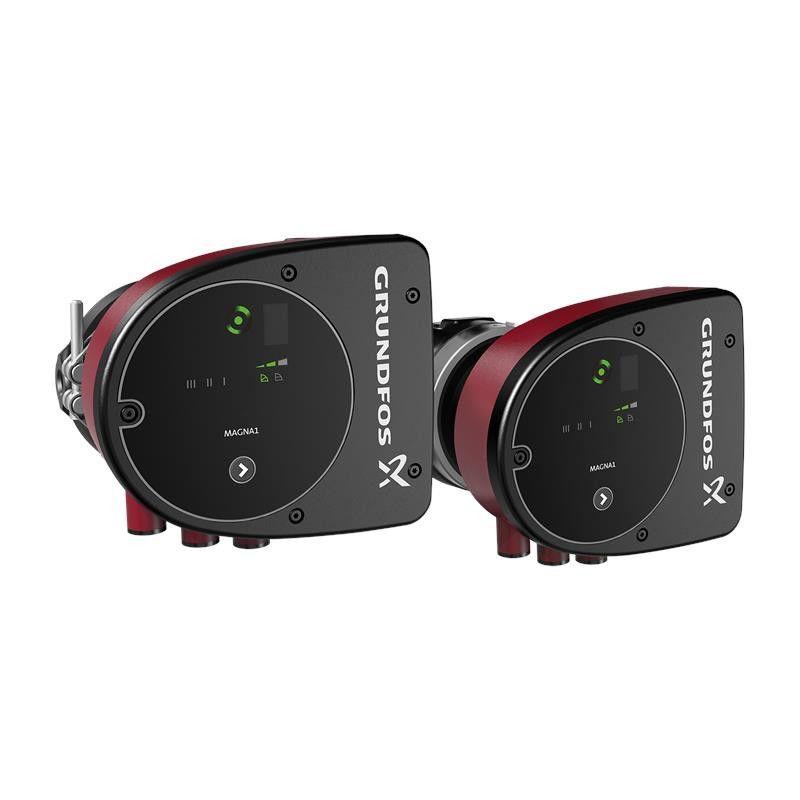

The MAGNA1 D circulator pump is ideal for basic performance needs in heating and cooling application. The pump offers peace of mind due to the security of supply obtained by having a redundant pump, resulting in improved uptime. The two pumps communicate wirelessly.
| SKU | 99221238 |
| Manufacturer | Grundfos |
| Product Name | MAGNA1 D 32-40 |
| Product No | 99221238 |
| EAN Number | 5712608942112 |
| Price | GBP 1528 |
| Technical | |
| Headmax | 40 dm |
| TF Class | 110 |
| Approvals | CE,VDE,EAC,MOROCCO,UKCA,TSERCM,UkrSEPRO |
| Model | C |
| Materials | |
| Pump Housing | Cast iron EN-GJL-200 ASTM A48-200B |
| Impeller | PES 30%GF |
| Installation | |
| Range of Ambient Temperature | 0 .. 40 °C |
| Maximum Operating Pressure | 10 bar |
| Pipe Connection | G 2" |
| Pressure Rating | PN 10 |
| Port-to-Port Length | 180 mm |
| Liquid | |
| Pumped Liquid | Water |
| Liquid Temperature Range | -10 .. 110 °C |
| Selected Liquid Temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Electrical data | |
| Power Input - P1 | 9 .. 73 W |
| Mains Frequency | 50 / 60 Hz |
| Rated Voltage [V] | 1 x 230 V |
| Maximum Current Consumption | 0.09 .. 0.59 A |
| Enclosure Class (IEC 34-5) | X4D |
| Insulation Class (IEC 85) | F |
| Others | |
| Energy (EEI) | 0.23 |
| Environmental Approvals | CN ROHS,WEEE |
| Net Weight | 11.1 kg |
| Gross Weight | 12.8 kg |
| Shipping Volume | 0.046 m³ |
| Country of Origin | DE |
| Custom Tariff No. | 84137030 |
| Quotation | |
| MAGNA1 D 32-40 | The Grundfos MAGNA1 D circulator pump is the simple option for a job well done. With its high energy efficiency the product lives up to the EuP 2015 regulations ensuring substantial savings on electricity, and with its intuitive, user-friendly interface and maintenance-free design, MAGNA1 D is the ideal circulator pump for basic performance needs in applications where basic system control and monitoring are desired. With this range of circulator pumps, everything from setup to basic control and monitoring are made easy. The pump is maintenance-free due to the canned-rotor type design. MAGNA1 D offers peace of mind due to the security of supply obtained by having a redundant pump, resulting in improved uptime. The flow, and thereby constant comfort, is secured because of its ability to automatically switch between pump heads if one breaks down. The two pumps communicate wirelessly. MAGNA1 D offers the possibility of monitoring the pump via the fault relay output. The digital start/stop input remotely controls the pump. The pump communicates wirelessly with the Grundfos GO Remote app and can also communicate via radio. MAGNA1 D can work as main pump in both heating and cooling applications, including: Mixing loops Heating surfaces Air-conditioning surfaces Ground-source heat pump systems Smaller chiller applications. MAGNA1 D is a single-phase pump and characterised by having the controller and operating panel integrated in the control box. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of stainless steel and the stator housing is made of aluminium. The power electronics are air-cooled. The pump incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter. |
Suitable for
The MAGNA1 D circulator pump is ideal for basic performance needs in heating and cooling application. The pump offers peace of mind due to the security of supply obtained by having a redundant pump, resulting in improved uptime. The two pumps communicate wirelessly.
| SKU | 99221238 |
| Manufacturer | Grundfos |
| Product Name | MAGNA1 D 32-40 |
| Product No | 99221238 |
| EAN Number | 5712608942112 |
| Price | GBP 1528 |
| Technical | |
| Headmax | 40 dm |
| TF Class | 110 |
| Approvals | CE,VDE,EAC,MOROCCO,UKCA,TSERCM,UkrSEPRO |
| Model | C |
| Materials | |
| Pump Housing | Cast iron EN-GJL-200 ASTM A48-200B |
| Impeller | PES 30%GF |
| Installation | |
| Range of Ambient Temperature | 0 .. 40 °C |
| Maximum Operating Pressure | 10 bar |
| Pipe Connection | G 2" |
| Pressure Rating | PN 10 |
| Port-to-Port Length | 180 mm |
| Liquid | |
| Pumped Liquid | Water |
| Liquid Temperature Range | -10 .. 110 °C |
| Selected Liquid Temperature | 60 °C |
| Density | 983.2 kg/m³ |
| Electrical data | |
| Power Input - P1 | 9 .. 73 W |
| Mains Frequency | 50 / 60 Hz |
| Rated Voltage [V] | 1 x 230 V |
| Maximum Current Consumption | 0.09 .. 0.59 A |
| Enclosure Class (IEC 34-5) | X4D |
| Insulation Class (IEC 85) | F |
| Others | |
| Energy (EEI) | 0.23 |
| Environmental Approvals | CN ROHS,WEEE |
| Net Weight | 11.1 kg |
| Gross Weight | 12.8 kg |
| Shipping Volume | 0.046 m³ |
| Country of Origin | DE |
| Custom Tariff No. | 84137030 |
| Quotation | |
| MAGNA1 D 32-40 | The Grundfos MAGNA1 D circulator pump is the simple option for a job well done. With its high energy efficiency the product lives up to the EuP 2015 regulations ensuring substantial savings on electricity, and with its intuitive, user-friendly interface and maintenance-free design, MAGNA1 D is the ideal circulator pump for basic performance needs in applications where basic system control and monitoring are desired. With this range of circulator pumps, everything from setup to basic control and monitoring are made easy. The pump is maintenance-free due to the canned-rotor type design. MAGNA1 D offers peace of mind due to the security of supply obtained by having a redundant pump, resulting in improved uptime. The flow, and thereby constant comfort, is secured because of its ability to automatically switch between pump heads if one breaks down. The two pumps communicate wirelessly. MAGNA1 D offers the possibility of monitoring the pump via the fault relay output. The digital start/stop input remotely controls the pump. The pump communicates wirelessly with the Grundfos GO Remote app and can also communicate via radio. MAGNA1 D can work as main pump in both heating and cooling applications, including: Mixing loops Heating surfaces Air-conditioning surfaces Ground-source heat pump systems Smaller chiller applications. MAGNA1 D is a single-phase pump and characterised by having the controller and operating panel integrated in the control box. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of stainless steel and the stator housing is made of aluminium. The power electronics are air-cooled. The pump incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter. |
