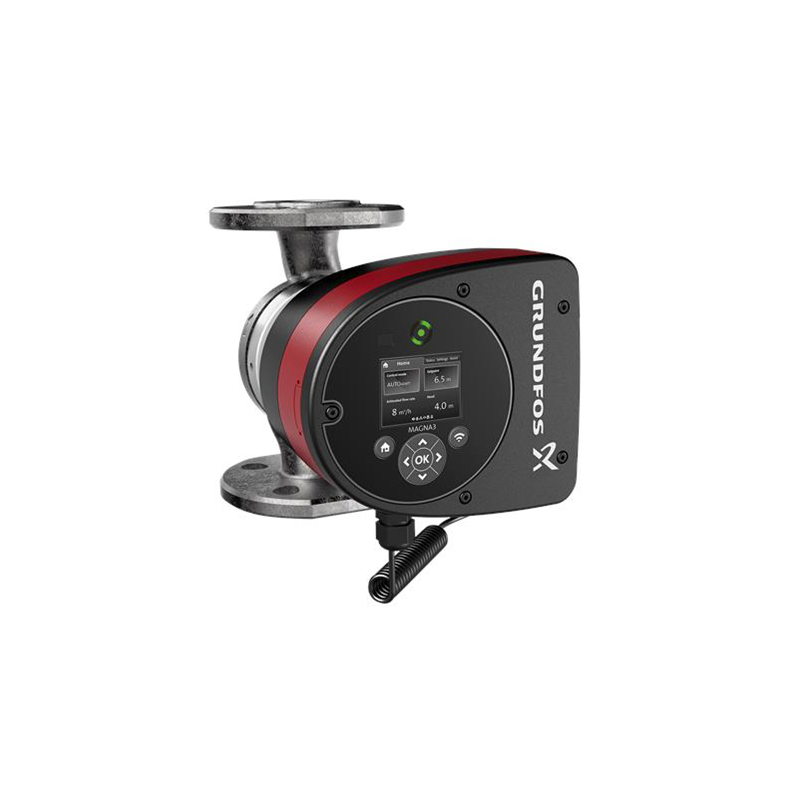

Grundfos MAGNA3 40-40FN DHW Circulator Pump 240V

MAGNA3 40-40FN DHW Circulator Pump 240V

The Grundfos MAGNA3 circulator pump is the ideal choice for almost any building project – old or new. With its

unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 is ideal for

engineers and specifiers looking to create high-performance heating and cooling systems.

The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an

integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped

liquid.

MAGNA3 features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving

you access to advanced reporting and monitoring.

MAGNA3 model E has Bluetooth, which allows you to connect directly to Grundfos Go app on your smart phone

without any need for a dongle.

The pump includes fieldbus communication via CIM modules as well as analog and digital inputs and configurable

relays.

Control features include AUTOADAPT and FLOWADAPT. FLOWADAPT which reduces the need for throttling valves,

thus cutting costs on system components.

MAGNA3 is the superior choice for a wide range of heating and cooling applications, including:

• Mixing loops
• Heating surfaces
• Air conditioning surfaces
• Ground-source heat pump systems
• Smaller chiller applications.
