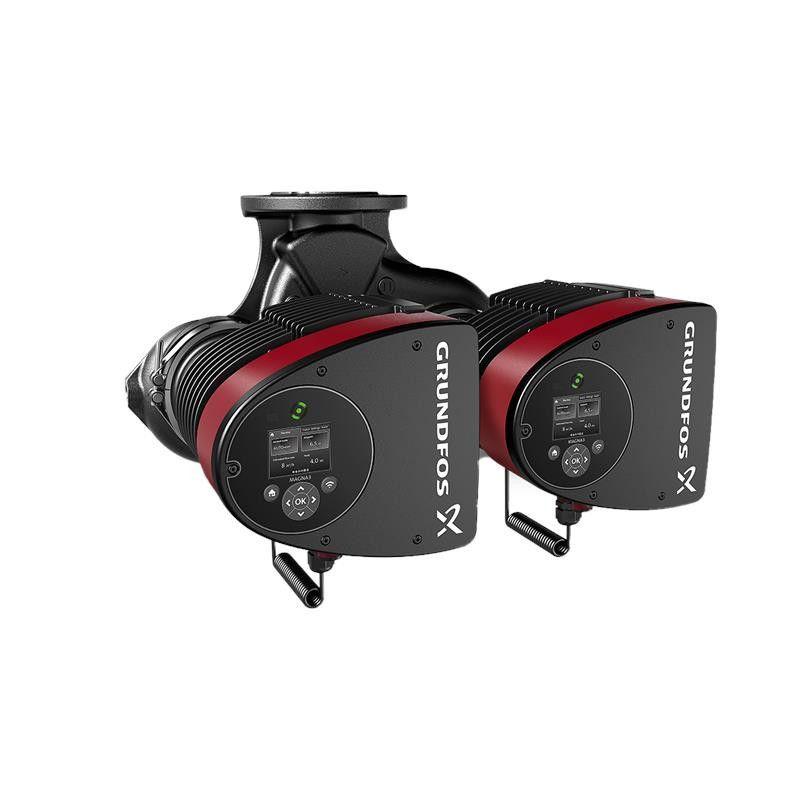

Grundfos MAGNA3 D 40-80 F

£2,858.47 (Inc. VAT)
£2,382.06 (Ex. VAT)

97924463 Commercial Circulators, Central Heating,
Description

MAGNA3 D 40-80 F

Suitable for

  • Commercial air conditioning
  • Commercial heating
  • Domestic hot water recirculation
  • Domestic heating
  • District cooling
  • District heating
  • Industrial heating


The MAGNA3 D circulator pump means double the performance and reduced downtime due to the three multipump modes: Alternating, backup and cascade operation. The two pumps communicate wirelessly. The MAGNA3 D is ideal for high-performance heating and cooling applications.

More information
SKU 97924463
Manufacturer Grundfos
Product Name MAGNA3 D 40-80 F
Product No 97924463
EAN Number 5710626495412
Price GBP 3838
Technical
Rated flow 10.44 m³/h
Rated head 5.653 m
Headmax 80 dm
TF Class 110
Approvals CE,VDE,EAC,MOROCCO,UKCA,TSERCM,UkrSEPRO
Model D
Materials
Pump Housing Cast iron EN-GJL-250 ASTM A48-250B
Impeller PES 30%GF
Installation
Range of Ambient Temperature 0 .. 40 °C
Maximum Operating Pressure 10 bar
Flange standard DIN
Pipe Connection DN 40
Pressure Rating PN 6/10
Port-to-Port Length 220 mm
Liquid
Pumped Liquid Water
Liquid Temperature Range -10 .. 110 °C
Selected Liquid Temperature 60 °C
Density 983.2 kg/m³
Electrical data
Power Input - P1 17 .. 269 W
Mains Frequency 50 / 60 Hz
Rated Voltage [V] 1 x 230 V
Maximum Current Consumption 0.19 .. 1.24 A
Enclosure Class (IEC 34-5) X4D
Insulation Class (IEC 85) F
Others
Energy (EEI) 0.20
Environmental Approvals CN ROHS,WEEE
Net Weight 32.4 kg
Gross Weight 36.3 kg
Shipping Volume 0.087 m³
Swedish RSK No. 5732529
Norwegian NRF no. 9042756
Country of Origin DE
Custom Tariff No. 84137030
Quotation
MAGNA3 D 40-80 F The Grundfos MAGNA3 D circulator pump is the ideal choice for almost any building project – old or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 D is ideal for engineers and specifiers looking to create high-performance heating and cooling systems. The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. MAGNA3 D offers three multipump modes: Alternating, backup and cascade operation. In alternating and backup operation, only one pump operates at a time, both ensuring constant comfort. In alternating operation, the change from one pump to the other depends on time or energy. If a pump fails, the other pump will take over automatically. In backup operation, the backup pump is operated at intervals to prevent seizing up. If the duty pump stops due to a fault, the backup pump will start automatically. In cascade operation, the pumps automatically switch on and off, adapting to the current consumption in the system. The two pumps communicate wirelessly. MAGNA3 D features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving you access to advanced reporting and monitoring. MAGNA3 model E has Bluetooth, which allows you to connect directly to Grundfos Go app on your smart phone without any need for a dongle. The pump includes fieldbus communication via CIM modules as well as analog and digital inputs and configurable relays. Control features include AUTOADAPT and FLOWADAPT. FLOWADAPT which reduces the need for throttling valves, thus cutting costs on system components. MAGNA3 D is the superior choice for a wide range of heating and cooling applications, including: Mixing loops Heating surfaces Air conditioning surfaces Ground-source heat pump systems Smaller chiller applications. MAGNA3 D is a single-phase pump and characterised by having the controller and display integrated in the control box. The pump also has a built-in differential-pressure and temperature sensor. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of stainless steel and the stator housing is made of aluminium. The power electronics are air-cooled. MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter.

MAGNA3 D 40-80 F

Suitable for

  • Commercial air conditioning
  • Commercial heating
  • Domestic hot water recirculation
  • Domestic heating
  • District cooling
  • District heating
  • Industrial heating


The MAGNA3 D circulator pump means double the performance and reduced downtime due to the three multipump modes: Alternating, backup and cascade operation. The two pumps communicate wirelessly. The MAGNA3 D is ideal for high-performance heating and cooling applications.

More information
SKU 97924463
Manufacturer Grundfos
Product Name MAGNA3 D 40-80 F
Product No 97924463
EAN Number 5710626495412
Price GBP 3838
Technical
Rated flow 10.44 m³/h
Rated head 5.653 m
Headmax 80 dm
TF Class 110
Approvals CE,VDE,EAC,MOROCCO,UKCA,TSERCM,UkrSEPRO
Model D
Materials
Pump Housing Cast iron EN-GJL-250 ASTM A48-250B
Impeller PES 30%GF
Installation
Range of Ambient Temperature 0 .. 40 °C
Maximum Operating Pressure 10 bar
Flange standard DIN
Pipe Connection DN 40
Pressure Rating PN 6/10
Port-to-Port Length 220 mm
Liquid
Pumped Liquid Water
Liquid Temperature Range -10 .. 110 °C
Selected Liquid Temperature 60 °C
Density 983.2 kg/m³
Electrical data
Power Input - P1 17 .. 269 W
Mains Frequency 50 / 60 Hz
Rated Voltage [V] 1 x 230 V
Maximum Current Consumption 0.19 .. 1.24 A
Enclosure Class (IEC 34-5) X4D
Insulation Class (IEC 85) F
Others
Energy (EEI) 0.20
Environmental Approvals CN ROHS,WEEE
Net Weight 32.4 kg
Gross Weight 36.3 kg
Shipping Volume 0.087 m³
Swedish RSK No. 5732529
Norwegian NRF no. 9042756
Country of Origin DE
Custom Tariff No. 84137030
Quotation
MAGNA3 D 40-80 F The Grundfos MAGNA3 D circulator pump is the ideal choice for almost any building project – old or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 D is ideal for engineers and specifiers looking to create high-performance heating and cooling systems. The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. MAGNA3 D offers three multipump modes: Alternating, backup and cascade operation. In alternating and backup operation, only one pump operates at a time, both ensuring constant comfort. In alternating operation, the change from one pump to the other depends on time or energy. If a pump fails, the other pump will take over automatically. In backup operation, the backup pump is operated at intervals to prevent seizing up. If the duty pump stops due to a fault, the backup pump will start automatically. In cascade operation, the pumps automatically switch on and off, adapting to the current consumption in the system. The two pumps communicate wirelessly. MAGNA3 D features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving you access to advanced reporting and monitoring. MAGNA3 model E has Bluetooth, which allows you to connect directly to Grundfos Go app on your smart phone without any need for a dongle. The pump includes fieldbus communication via CIM modules as well as analog and digital inputs and configurable relays. Control features include AUTOADAPT and FLOWADAPT. FLOWADAPT which reduces the need for throttling valves, thus cutting costs on system components. MAGNA3 D is the superior choice for a wide range of heating and cooling applications, including: Mixing loops Heating surfaces Air conditioning surfaces Ground-source heat pump systems Smaller chiller applications. MAGNA3 D is a single-phase pump and characterised by having the controller and display integrated in the control box. The pump also has a built-in differential-pressure and temperature sensor. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of stainless steel and the stator housing is made of aluminium. The power electronics are air-cooled. MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter.
