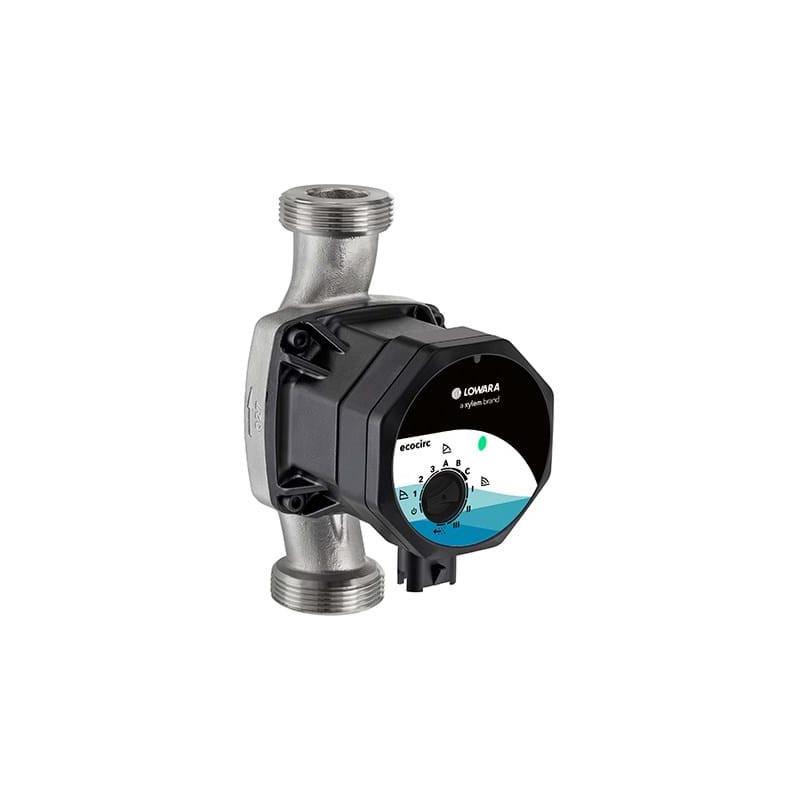

Lowara Ecocirc M 15-6/130 N (60B0L1004)

DESCRIPTION

Ecocirc M 15-6/130 N

Lowara Ecocirc circulation pumps are designed for water circulation in heating, air conditioning and domestic hot water systems. With 14 models and multiple control modes, the new Ecocirc range offers a smarter choice in the residential circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique 'one turn' knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc range reaches an EEI level 0.18.

This pump is suitable for the following applications:

• Refurbishment or extension of existing systems
• Facilities fitted with thermostatic valves
• Single-family houses or apartment buildings
• Underfloor heating systems

Efficiency

• Best-in-class energy efficiency (EEI 0.18)
• ECM motor for intelligent speed control
• Up to 80% lower power consumption
• Optimized hydraulics

Simplicity

• Multifunctional 'one turn' knob
• Compact and easy to install

Reliability

• Robust proven design
• Dry-run protection
• Warnings and alarms visualization

Economy

• Insulation shell as standard

ECOCIRC PRODUCT FEATURES

• High efficiency pumps with ECM-technology and permanent magnet rotor
• Low power consumption
• EEI 0.18
• Control modes: Proportional Pressure, Constant Pressure, Constand Speed
• Automatic 'air purge'
• Removable Plug Connection
• Insulation Shell
• Flow rate: up to 4.5m 3/h (depending on model, see performance graph)
• Head: up to 8m (depending on model, see performance graph)

PRODUCT SPECIFICATION

• • SKU: 60B0L1004
• • Manufacturer: Lowara

Ecocirc-Basic-and-Premiumc.pdf lowara-ecocircstartup-guide.pdf ecocirc-M-15-6-130-N.pdf
