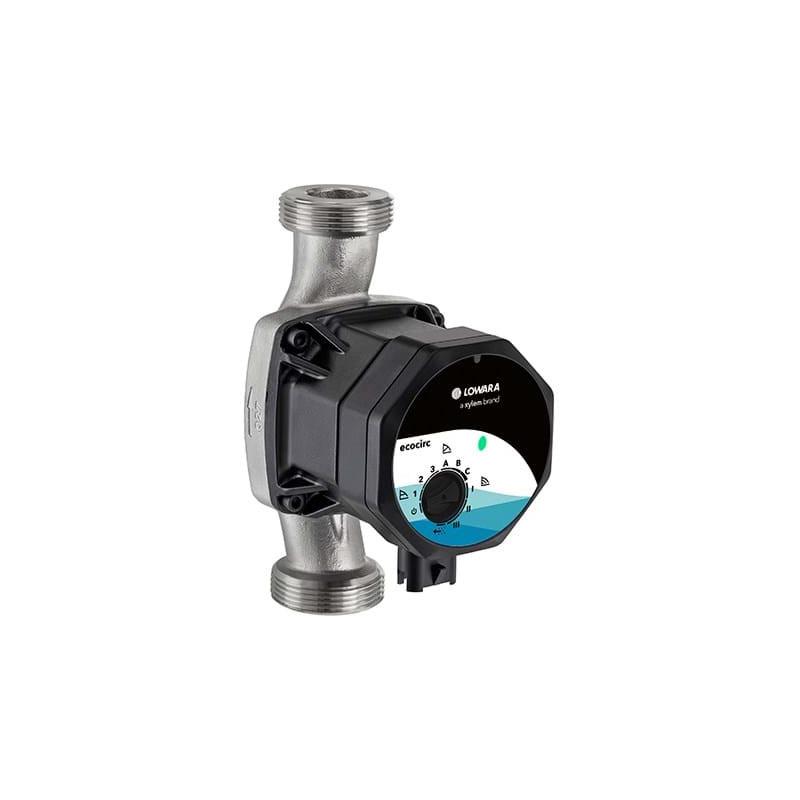

Lowara Ecocirc S 20-4/150 N (60B0L1008)

Ecocirc S 20-4/150 N

Lowara Ecocirc N circulation pumps are designed for water circulation in domestic hot water systems. With 14 models and multiple control modes, the new Ecocirc range offers a smarter choice in the domestic hot water circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique 'one turn' knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc range reaches an EEI level 0.18.

The pump can be used for:

• Refurbishment or extension of existing systems
• Single-family houses or apartment buildings
• Domestic hot water systems

Efficiency

• Best-in-class energy efficiency (EEI 0.18)
• ECM motor for intelligent speed control
• Up to 80% lower power consumption
• Optimized hydraulics

Simplicity

• Multifunctional 'one turn' knob
• Compact and easy to install

Reliability

• Robust proven design
• Stainless steel pump housing
• Dry-run protection
• Warnings and alarms visualization

Economy

• Insulation shell as standard

ECOCIRC N PRODUCT FEATURES

• High efficiency pumps with ECM-technology and permanent magnet rotor
• Low power consumption
• EEI 0.18
• Stainless steel pump housing
• Control modes:
• Proportional Pressure
• Constant Pressure
• Constand Speed
• Automatic air purge
• Plug
• Insulation shell
• Flow rate: up to 4.5 m3/h (depending on model, see performance graph)
• Head: up to 8 m (depending on model, see performance graph)
