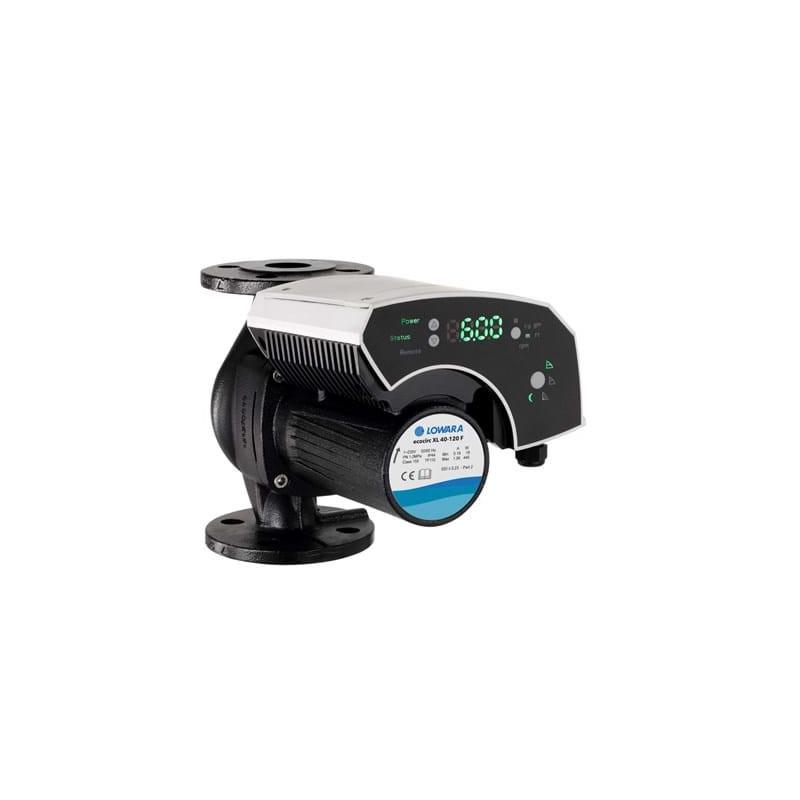

Lowara Ecocirc XLplus 25-100 (E503220AA)
Image unavailable

SKU: E503220AA

Lowara Ecocirc XLplus 25-100 (E503220AA)

BRAND: Lowara

CATEGORY: Commercial Circulators | National Pumps & Boilers

The Lowara Ecocirc XL Plus 25 100 E503220Aa is a high-efficiency circulator pump that moves hot water through heating systems...

£511.39 EX. VAT

£613.67 INC. VAT

Login to save to wishlist

Forgot password?

Don’t have an account yet? Register here

Added to cart

Lowara Ecocirc XLplus 25-100 (E503220AA) has been added to your cart!

Go to Checkout

DESCRIPTION

The Lowara Ecocirc XL Plus 25 100 E503220Aa is a high-efficiency circulator pump that moves hot water through heating systems in commercial buildings. It automatically adjusts its speed based on demand to save energy and lower running costs. Key benefits: • Keeps radiators and underfloor heating working at the right temperature • Variable speed control uses only the energy needed at any time • Quiet operation that will not disturb building occupants • Durable construction for years of reliable, low-maintenance service • Standard connections for straightforward installation Well suited for offices, schools, hospitals, and large buildings needing dependable, energy-saving heating.

PRODUCT SPECIFICATION

Boiler Illustration
  • • Port to Port:  180mm
  • • Connection:  Threaded pipe / G 1½” – Rp 1
  • • Nominal Pressure:  PN6/10
  • • Specific EEI:  ≤0,23
  • • Rated Voltage:  230 V / 50Hz
  • • Rated Current:  1.7A
  • • Protection Class:  IP44
  • • Insulation Class:  F
  • • Communication:  Modbus RTU & BACnet MS/TP
  • • Analog Input:  0-10 V / 4-20 mA
  • • Digital Input Contact Load:  5V, 10 mA
  • • Digital Output:  Vmax < 250 VAC / Imax < 2 A
  • • Leakage Current:  < 3.5 mA
  • • Sound Pressure Level:  ≤ 45dB(A)
  • • Pump Housing:  Cast Iron
  • • Impeller:  PPS
  • • Motor Housing:  Aluminium
  • • Shaft &amp; Rotor Can:  Stainless Steel
  • • Bearings:  Carbon, resin impregnated
  • • O-Rings:  EDPM

BRAND INFORMATION

Lowara is a leading manufacturer of pumps and circulators for commercial heating, cooling, and water supply systems. Their Ecocirc range offers energy-efficient variable speed circulators trusted by heating engineers. Brand highlights: • Ecocirc S, M, and L variable speed circulators for heating systems • Ecocirc XL Plus commercial circulators in single and twin configurations • HME horizontal multistage pumps for water pressure boosting • Stainless steel options for domestic hot water circulation • Wide range of sizes to match any commercial heating project Browse the Lowara range at National Pumps and Boilers for quality commercial pump solutions.
