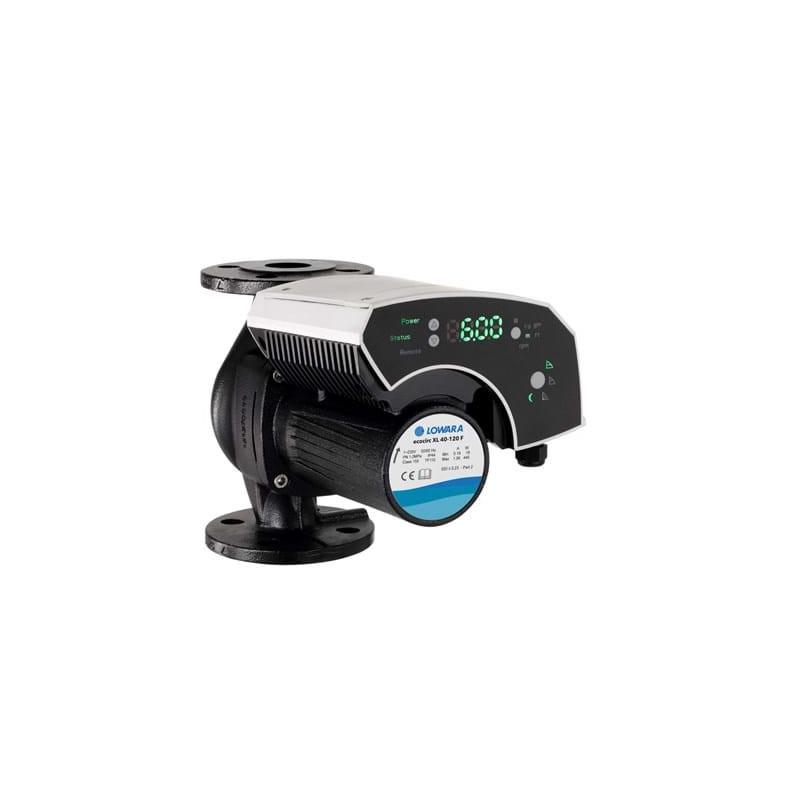

Lowara Ecocirc XLplus 25-60 (605009175)

£518.40 (Inc. VAT)
£432.00 (Ex. VAT)

605009175 Central Heating, Commercial Circulators,
Description

Ecocirc XLplus 25-60

The Ecocirc XLplus 25-60 circulator features a variable speed drive and is suitable for water circulation in heating and AC Systems. The XLplus 25-60 and communicates with BMS systems via Modbus RTU

Pump Data

  • Port to Port: 180mm
  • Elec. Connection: Plug
  • Specific EEI: <=0,23
  • Nominal Pressure: PN6/10
  • Connection: Threaded pipe / G 1½ €“ Rp 1

Electrical Data

  • Rated Voltage: 230 V
  • Frequency: 50Hz
  • Protection class: IP44
  • Insulation class: F
  • Digital input Contact load: 5V, 10 mA
  • Digital output Vmax < 250 VAC / Imax < 2 A
  • Analog Input: 0-10 V / 4-20 mA
  • Leakage Current: < 3.5 mA
  • Communication: Modbus RTU
  • Sound Pressure Level: <= 38dB(A)
  • Rated Current: 1.0A

Materials

  • Bush Bearing: Carbon, resin impregnated
  • Mech.seal ball ½": Aluminum oxide
  • Casing Plate: Stainless steel
  • Motor Housing: Aluminium
  • O-Rings: EDPM
  • Pump Housing: Cast Iron
  • Impeller: PPO
  • Neck Ring: Stainless steel
  • Rotor Can: Stainless steel
  • Shaft: Stainless Steel
  • Control box: Polycarbonate


More information
SKU 605009175
Weight 1.20 KG
Manufacturer Lowara
Voltage 230V
Phase 1ph

Ecocirc XLplus 25-60

The Ecocirc XLplus 25-60 circulator features a variable speed drive and is suitable for water circulation in heating and AC Systems. The XLplus 25-60 and communicates with BMS systems via Modbus RTU

Pump Data

  • Port to Port: 180mm
  • Elec. Connection: Plug
  • Specific EEI: <=0,23
  • Nominal Pressure: PN6/10
  • Connection: Threaded pipe / G 1½ €“ Rp 1

Electrical Data

  • Rated Voltage: 230 V
  • Frequency: 50Hz
  • Protection class: IP44
  • Insulation class: F
  • Digital input Contact load: 5V, 10 mA
  • Digital output Vmax < 250 VAC / Imax < 2 A
  • Analog Input: 0-10 V / 4-20 mA
  • Leakage Current: < 3.5 mA
  • Communication: Modbus RTU
  • Sound Pressure Level: <= 38dB(A)
  • Rated Current: 1.0A

Materials

  • Bush Bearing: Carbon, resin impregnated
  • Mech.seal ball ½": Aluminum oxide
  • Casing Plate: Stainless steel
  • Motor Housing: Aluminium
  • O-Rings: EDPM
  • Pump Housing: Cast Iron
  • Impeller: PPO
  • Neck Ring: Stainless steel
  • Rotor Can: Stainless steel
  • Shaft: Stainless Steel
  • Control box: Polycarbonate


More information
SKU 605009175
Weight 1.20 KG
Manufacturer Lowara
Voltage 230V
Phase 1ph
Curve
Drawing
