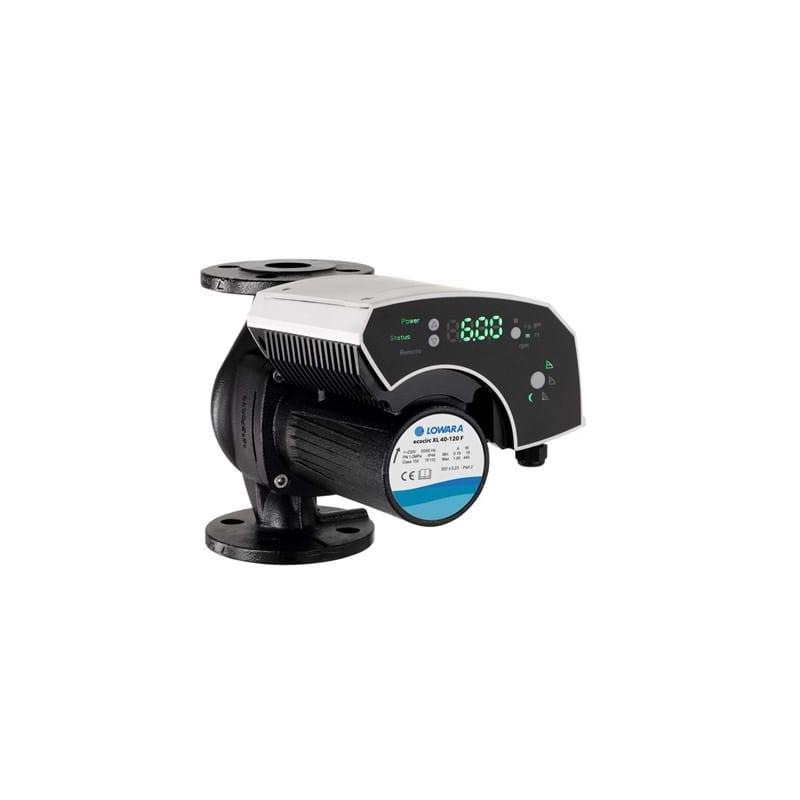

Name: Lowara Ecocirc XLplus 32-120 F (E503270AA)
Price: 1,065.60 GBP

Ecocirc XLplus 32-120 F

The Ecocirc XLplus D 32-120F circulator features a variable speed drive and is suitable for water circulation in HVAC systems and communicates with BMS systems via Modbus RTU and BACnet.

Pump Data

Port to Port: 220mm
Elec. Connection: Terminals
Specific EEI: <=0,23
Nominal Pressure: PN6/10
Connection: DN32 / Flanged

Electrical Data

Rated Voltage: 230 V
Frequency: 50Hz
Protection class: IP44
Insulation class: F
Digital input Contact load: 5V, 10 mA
Digital output Vmax < 250 VAC / Imax < 2 A
Analog Input: 0-10 V / 4-20 mA
Leakage Current: < 3.5 mA
Communication: Modbus RTU & BACnet MS/TP
Sound Pressure Level: <= 48dB(A)
Rated Current: 2.3A

Materials

Bush Bearing: Carbon, resin impregnated
Thrust bearing Aluminum oxide
Bearing plate: Stainless steel
Motor Housing: Aluminium
O-Rings: EDPM
Pump Housing: Cast Iron
Impeller: PPS
Wear ring: Stainless steel
Neck Ring: Stainless steel
Rotor Can: Stainless steel
Shaft: Stainless Steel
Control box: Polycarbonate

Specification

More information

SKU	E503270AA
Weight	10.50 KG
Manufacturer	Lowara
Voltage	230V
Phase	1ph

Curves

Drawings
