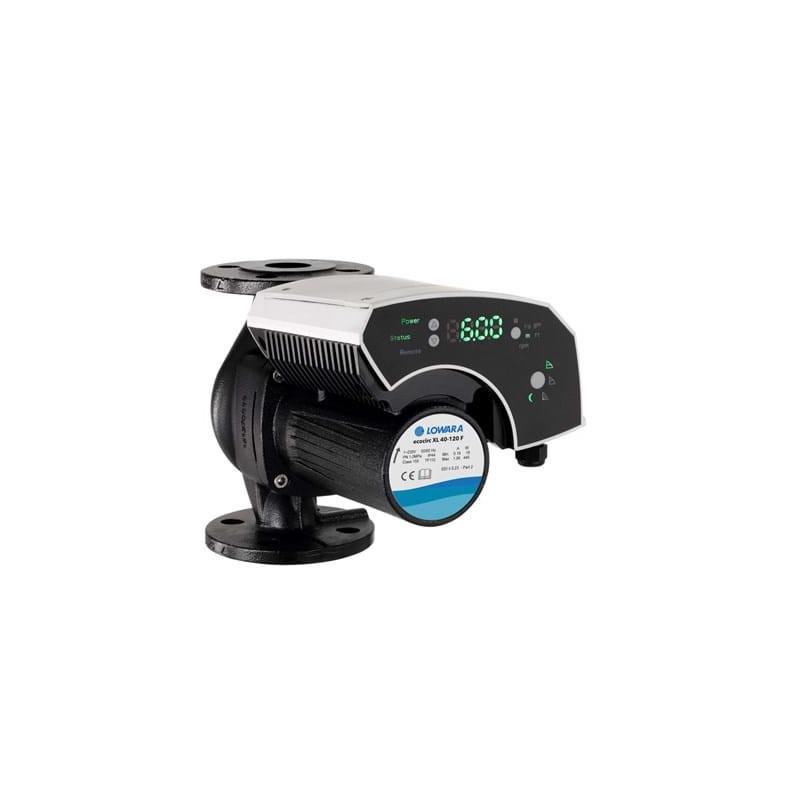

Name: Lowara Ecocirc XLplus 32-60 (605009275)
Price: 623.52 GBP

Ecocirc XLplus 32-60

The Ecocirc XLplus 32-60 circulator features a variable speed drive and is suitable for water circulation in heating and AC Systems. The XLplus 32-60 and communicates with BMS systems via Modbus RTU

Pump Data

Port to Port: 180mm
Elec. Connection: Plug
Specific EEI: <=0,23
Nominal Pressure: PN6/10
Connection: Threaded pipe / G 2" €“ Rp 1¼"

Electrical Data

Rated Voltage: 230 V
Frequency: 50Hz
Protection class: IP44
Insulation class: F
Digital input Contact load: 5V, 10 mA
Digital output Vmax < 250 VAC / Imax < 2 A
Analog Input: 0-10 V / 4-20 mA
Leakage Current: < 3.5 mA
Communication: Modbus RTU
Sound Pressure Level: <= 38dB(A)
Rated Current: 1.0A

Materials

Bush Bearing: Carbon, resin impregnated
Mech.seal ball ½": Aluminum oxide
Casing Plate: Stainless steel
Motor Housing: Aluminium
O-Rings: EDPM
Pump Housing: Cast Iron
Impeller: PPO
Neck Ring: Stainless steel
Rotor Can: Stainless steel
Shaft: Stainless Steel
Control box: Polycarbonate

Specification

More information

SKU	605009275
Weight	1.20 KG
Manufacturer	Lowara
Voltage	12v
Phase	1ph

Curves

Drawings
