Lowara Ecocirc XLplus 40-80/F (E501330AA)
Image unavailable

SKU: E501330AA

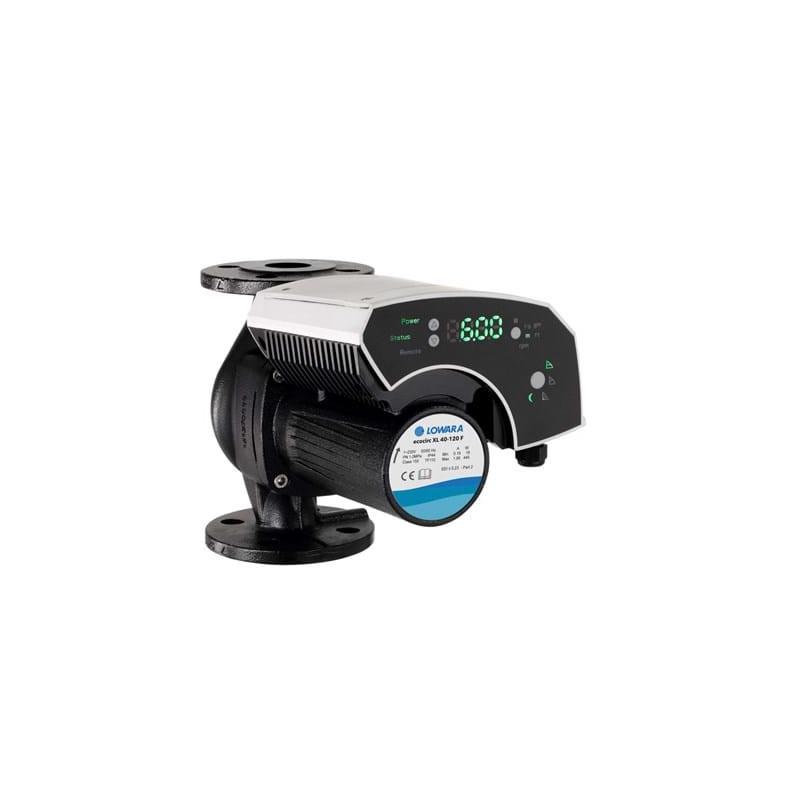

Lowara Ecocirc XLplus 40-80/F (E501330AA)

BRAND: Lowara

CATEGORY: Commercial Circulators

For an intelligent, efficient, and quiet water circulation solution, consider the Lowara Ecocirc XLplus 40/80/F (E501330AA). Engineered for exceptional performance...

£917.85 EX. VAT

£1,101.42 INC. VAT

Login to save to wishlist

Forgot password?

Don’t have an account yet? Register here

Added to cart

Lowara Ecocirc XLplus 40-80/F (E501330AA) has been added to your cart!

Go to Checkout

DESCRIPTION

For an intelligent, efficient, and quiet water circulation solution, consider the Lowara Ecocirc XLplus 40/80/F (E501330AA). Engineered for exceptional performance in heating and AC systems, National Pumps and Boilers offers these advanced lowara ecocirc pumps as investments in long-term reliability, energy savings, and comfort.

Smart, Efficient Circulation & Key Benefits

The Lowara Ecocirc XLplus 40/80/F is a smart, energy-efficient pump for modern buildings. Its integrated variable speed drive adjusts to real-time needs, saving energy and reducing costs and environmental impact. Operating quietly (≤ 48dB(A)), it integrates with BMS via Modbus RTU & BACnet MS/TP for remote control and diagnostics.

Engineered by Lowara with quality materials like a cast iron pump housing and stainless steel shaft, it ensures longevity. It features a DN40 flanged connection, PN6/10 nominal pressure rating, 220mm port-to-port dimension, plug electrical connection, IP44 protection, and Class F insulation, making it durable and easy to use in your commercial circulators system.

Key benefits:

  • Energy Savings: Variable speed drive and EEI ≤0.23 cut electricity use.
  • Quiet Operation: Low sound pressure (≤ 48dB(A)) enhances comfort.
  • Smart System Integration: BMS communication for superior control.
  • Optimised Performance: Adapts to system demands for peak efficiency.
  • Reliable Construction: Quality components ensure long service life.
  • Versatile Application: Ideal for various heating & AC systems.
  • User-Friendly Installation: Plug connection simplifies setup.

Product Specifications

Pump Data:

  • Connection: DN40 Flanged
  • Port to Port Distance: 220mm
  • Nominal Pressure: PN6/10
  • Specific Energy Efficiency Index (EEI): ≤0.23

Electrical Data:

  • Rated Voltage: 230 V
  • Frequency: 50Hz
  • Electrical Connection: Plug
  • Protection Class (IP Rating): IP44
  • Insulation Class: F
  • Rated Current: 1.4A
  • Leakage Current: < 3.5 mA
  • Digital input Contact load: 5V, 10 mA
  • Digital output: Vmax < 250 VAC / Imax < 2 A
  • Analog Input: 0-10 V / 4-20 mA

Performance & Communication:

  • Drive: Variable Speed Drive
  • Communication Protocols: Modbus RTU, BACnet MS/TP
  • Sound Pressure Level: ≤ 48dB(A)

Materials:

  • Pump Housing: Cast Iron
  • Impeller: PPS
  • Shaft: Stainless Steel
  • Motor Housing: Aluminium
  • Rotor Can: Stainless steel
  • Neck Ring: Stainless steel
  • Casing Plate: Stainless steel
  • Bush Bearing: Carbon, resin impregnated
  • Mech.seal ball ½": Aluminum oxide
  • O-Rings: EPDM
  • Control box: Polycarbonate

National Pumps and Boilers: Your Partner for Advanced Pumping Solutions

At National Pumps and Boilers, we provide cutting-edge pumping technology. The Lowara Ecocirc XLplus range, with these efficient lowara ecocirc pumps, is the best in modern circulation. Our experienced team offers expert advice to help you select the perfect model.

Ready for smarter, efficient, quieter circulation? Call Us: 0333 3583060 Email Us: info@nationalpumpsandboilers.co.uk

PRODUCT SPECIFICATION

Boiler Illustration
  • Product Name:  Lowara Ecocirc XLplus 40-80/F (E501330AA)
  • Brand:  Lowara
  • Category:  Commercial Circulators
  • Part Number:  E501330AA
  • Connection:  DN40 Flanged
  • Port to Port Distance:  220mm
  • Nominal Pressure:  PN6/10
  • Specific Energy Efficiency Index (EEI):  ≤0.23
  • Rated Voltage:  230 V
  • Frequency:  50Hz
  • Electrical Connection:  Plug
  • Protection Class (IP Rating):  IP44
  • Insulation Class:  F
  • Rated Current:  1.4A
  • Leakage Current:  < 3.5 mA
  • Digital input Contact load:  5V, 10 mA
  • Digital output:  Vmax < 250 VAC / Imax < 2 A
  • Analog Input:  0-10 V / 4-20 mA
  • Drive:  Variable Speed Drive
  • Communication Protocols:  Modbus RTU, BACnet MS/TP
  • Sound Pressure Level:  ≤ 48dB(A)
  • Pump Housing:  Cast Iron
  • Impeller:  PPS
  • Shaft:  Stainless Steel
  • Motor Housing:  Aluminium
  • Rotor Can:  Stainless steel
  • Neck Ring:  Stainless steel
  • Casing Plate:  Stainless steel
  • Bush Bearing:  Carbon, resin impregnated
  • Mech.seal ball &frac12;&quot;:  Aluminum oxide
  • O-Rings:  EPDM
  • Control box:  Polycarbonate
