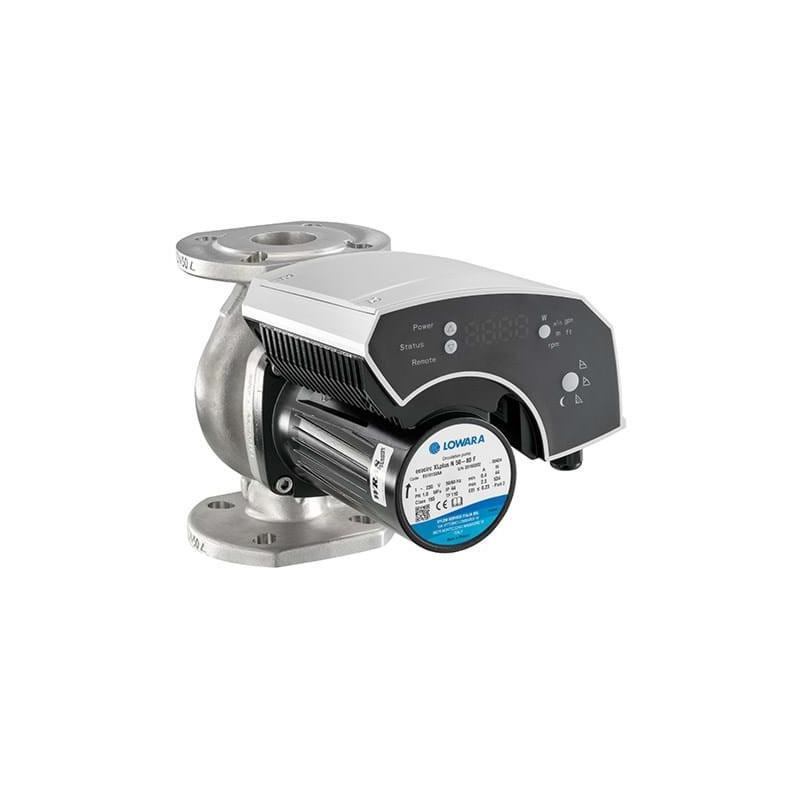

Lowara Ecocirc XLplus N 25-60 (605009375)
BRAND: Lowara
CATEGORY: Commercial Circulators
Ecocirc XLplus N 25-60 The Ecocirc XL N 25-60 stainless steel circulator features a variable speed drive and is suitable...
£666.00 EX. VAT
£799.20 INC. VAT
Login to save to wishlist
Lowara Ecocirc XLplus N 25-60 (605009375)
DESCRIPTION
Ecocirc XLplus N 25-60
The Ecocirc XL N 25-60 stainless steel circulator features a variable speed drive and is suitable for commercial hot water secondary circulation (HWS) and communicates with BMS systems via Modbus RTU and BACnet
Pump Data
- Port to Port: 180mm
- Elec. Connection: Plug
- Specific EEI: <=0,23
- Nominal Pressure: PN6/10
- Connection: Threaded pipe / G 1½ €“ Rp 1
Electrical Data
- Rated Voltage: 230 V
- Frequency: 50Hz
- Protection class: IP44
- Insulation class: F
- Sound Pressure Level: <= 38dB(A)
- Rated Current: 1A
Materials
- Bush Bearing: Carbon, resin impregnated
- Mech.seal ball ½": Aluminum oxide
- Casing Plate: Stainless steel
- Motor Housing: Aluminium
- O-Rings: EDPM
- Pump Housing: Stainless steel
- Impeller: PPO
- Neck Ring: Stainless steel
- Rotor Can: Stainless steel
- Shaft: Stainless Steel
- Control box: Polycarbonate
PRODUCT SPECIFICATION
- • SKU: 605009375
- • Manufacturer: Lowara
