- SKU: E510110AA

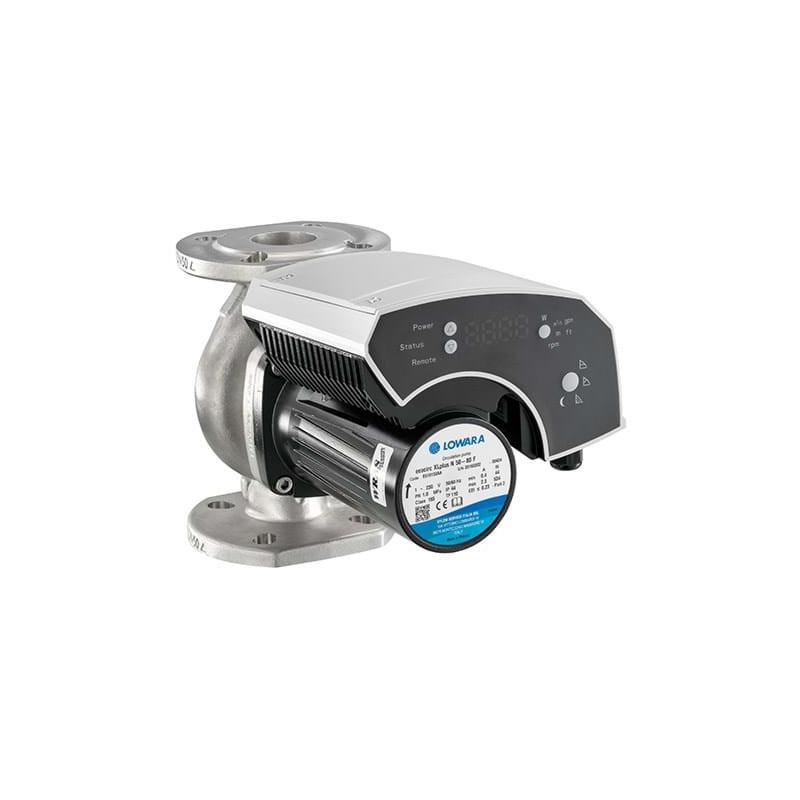

Lowara Ecocirc XLplus N 32-120 F (E510110AA)
BRAND: Lowara
CATEGORY: Commercial Circulators | National Pumps & Boilers
Ecocirc XLplus N 32-120 F The Ecocirc XLplus N 32-120 F stainless steel circulator features a variable speed drive and...
£1,389.85 EX. VAT
£1,667.82 INC. VAT
Login to save to wishlist
Added to cart
Lowara Ecocirc XLplus N 32-120 F (E510110AA) has been added to your cart!
Lowara Ecocirc XLplus N 32-120 F (E510110AA)
DESCRIPTION
Ecocirc XLplus N 32-120 F
The Ecocirc XLplus N 32-120 F stainless steel circulator features a variable speed drive and is suitable for commercial hot water secondary circulation (HWS) and communicates with BMS systems via Modbus RTU and BACnet.
Pump Data
- Port to Port: 220mm
- Elec. Connection: Terminals
- Specific EEI: <=0,23
- Nominal Pressure: PN6/10
- Connection: Flanged / DN32
Electrical Data
- Rated Voltage: 230 V
- Frequency: 50Hz
- Protection class: IP44
- Insulation class: F
- Sound Pressure Level: <= 48dB(A)
- Rated Current: 2.4A
Materials
- Bush Bearing: Carbon, resin impregnated
- Mech.seal ball ½": Aluminum oxide
- Casing Plate: Stainless steel
- Motor Housing: Aluminium
- O-Rings: EDPM
- Pump Housing: Stainless steel
- Impeller: PPS
- Neck Ring: Stainless steel
- Rotor Can: Stainless steel
- Shaft: Stainless Steel
- Control box: Polycarbonate
PRODUCT SPECIFICATION
- • Voltage: 230V
- • Phase: 1ph
BRAND INFORMATION
Find reliable Lowara pumps for water supply, boosting, and circulation. Our team provides technical support to match your specific pumping needs.
