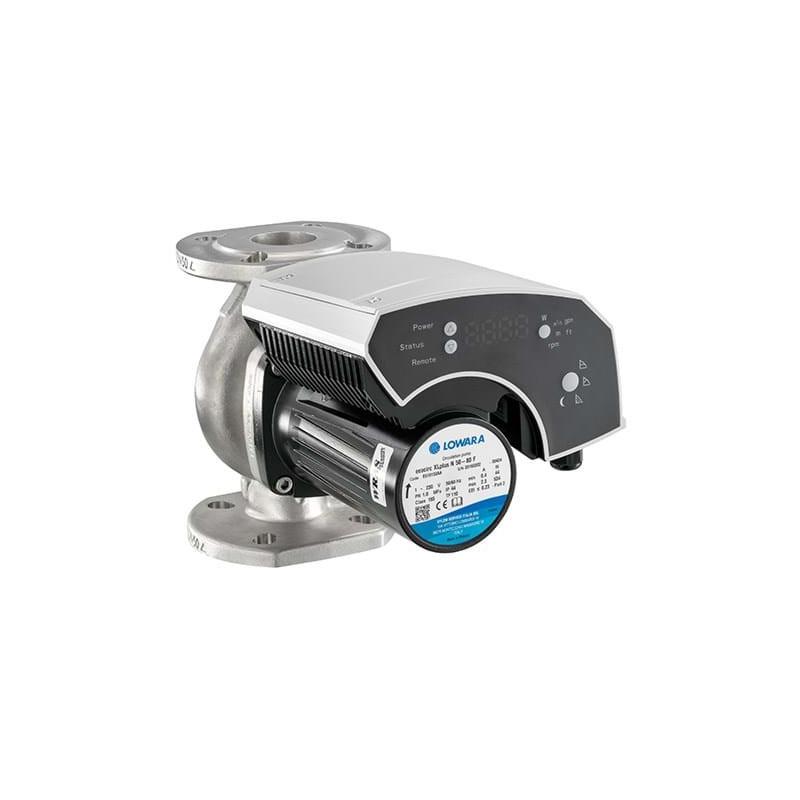

Lowara Ecocirc XLplus N 32-40 (605009425)

DESCRIPTION

Ecocirc XLplus N 32-40

The Ecocirc XL N 32-40 stainless steel circulator features a variable speed drive and is suitable for commercial hot water secondary circulation (HWS) and communicates with BMS systems via Modbus RTU and BACnet

Pump Data

• Port to Port: 180mm
• Elec. Connection: Plug
• Specific EEI: <=0,23
• Nominal Pressure: PN6/10
• Connection: Threaded pipe / G 2 €“ Rp 1¼

Electrical Data

• Rated Voltage: 230 V
• Frequency: 50Hz
• Protection class: IP44
• Insulation class: F
• Sound Pressure Level: <= 38dB(A)
• Rated Current: 0.5A

Materials

• Bush Bearing: Carbon, resin impregnated
• Mech.seal ball ½": Aluminum oxide
• Casing Plate: Stainless steel
• Motor Housing: Aluminium
• O-Rings: EDPM
• Pump Housing: Stainless steel
• Impeller: PPO
• Neck Ring: Stainless steel
• Rotor Can: Stainless steel
• Shaft: Stainless Steel
• Control box: Polycarbonate

PRODUCT SPECIFICATION

• • SKU: 605009425
• • Manufacturer: Lowara

lowara-ecocircstartup-guide.pdf Lowara-Ecocirc-XL-&-XL-Plus-Datasheets.pdf Ecocirc-XLplus-N-32-40.pdf
