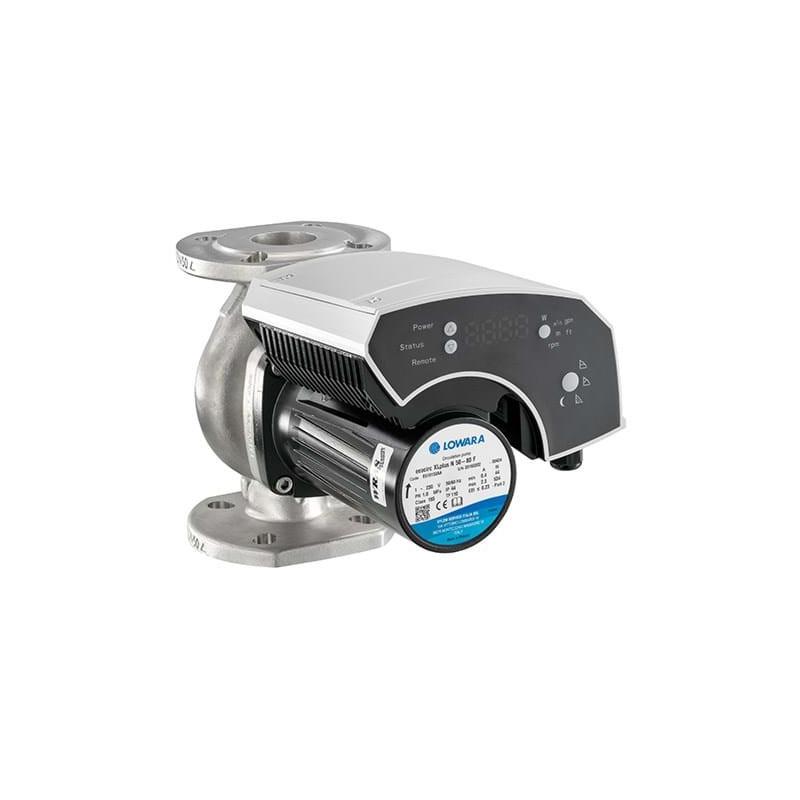

Lowara Ecocirc XLplus N 32-80 (E510090AA)

£990.00 (Inc. VAT)
£825.00 (Ex. VAT)

E510090AA Central Heating, Commercial Circulators,
Description

Ecocirc XLplus N 32-80

The Ecocirc XLplus N 32-80 stainless steel circulator features a variable speed drive and is suitable for commercial hot water secondary circulation (HWS) and communicates with BMS systems via Modbus RTU and BACnet

Pump Data

  • Port to Port: 180mm
  • Elec. Connection: Plug
  • Specific EEI: <=0,23
  • Nominal Pressure: PN6/10
  • Connection: Threaded pipe / G 2 €“ Rp 1¼

Electrical Data

  • Rated Voltage: 230 V
  • Frequency: 50Hz
  • Protection class: IP44
  • Insulation class: F
  • Sound Pressure Level: <= 45dB(A)
  • Rated Current: 1.4A

Materials

  • Bush Bearing: Carbon, resin impregnated
  • Mech.seal ball ½": Aluminum oxide
  • Casing Plate: Stainless steel
  • Motor Housing: Aluminium
  • O-Rings: EDPM
  • Pump Housing: Stainless steel
  • Impeller: PPS
  • Neck Ring: Stainless steel
  • Rotor Can: Stainless steel
  • Shaft: Stainless Steel
  • Control box: Polycarbonate


More information
SKU E510090AA
Weight 24.20 KG
Manufacturer Lowara
Voltage 230V
Phase 1ph

Ecocirc XLplus N 32-80

The Ecocirc XLplus N 32-80 stainless steel circulator features a variable speed drive and is suitable for commercial hot water secondary circulation (HWS) and communicates with BMS systems via Modbus RTU and BACnet

Pump Data

  • Port to Port: 180mm
  • Elec. Connection: Plug
  • Specific EEI: <=0,23
  • Nominal Pressure: PN6/10
  • Connection: Threaded pipe / G 2 €“ Rp 1¼

Electrical Data

  • Rated Voltage: 230 V
  • Frequency: 50Hz
  • Protection class: IP44
  • Insulation class: F
  • Sound Pressure Level: <= 45dB(A)
  • Rated Current: 1.4A

Materials

  • Bush Bearing: Carbon, resin impregnated
  • Mech.seal ball ½": Aluminum oxide
  • Casing Plate: Stainless steel
  • Motor Housing: Aluminium
  • O-Rings: EDPM
  • Pump Housing: Stainless steel
  • Impeller: PPS
  • Neck Ring: Stainless steel
  • Rotor Can: Stainless steel
  • Shaft: Stainless Steel
  • Control box: Polycarbonate


More information
SKU E510090AA
Weight 24.20 KG
Manufacturer Lowara
Voltage 230V
Phase 1ph
Curve
Drawing
