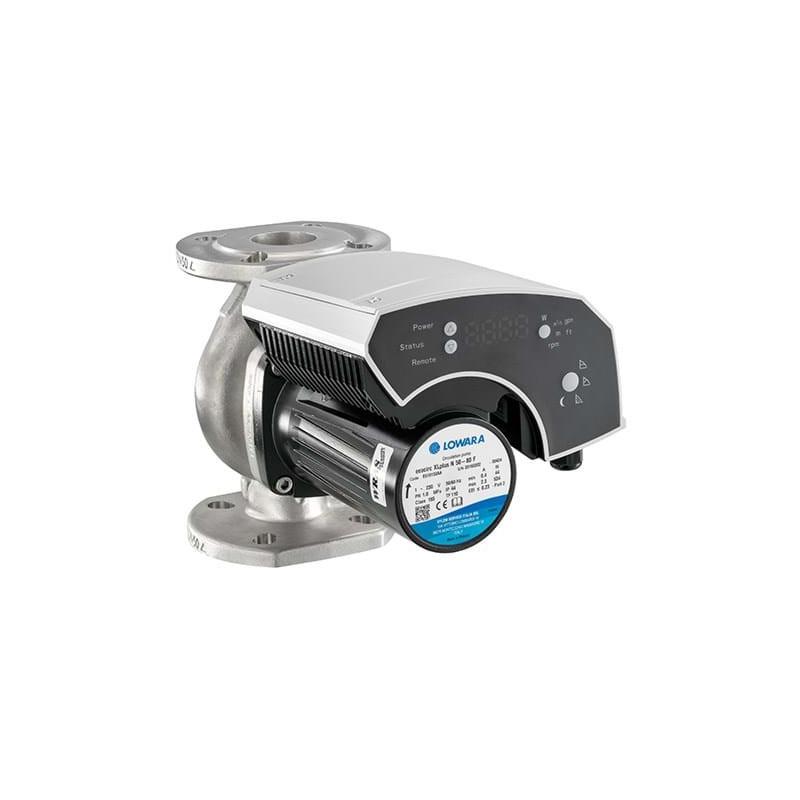

Lowara Ecocirc XLplus N 40-120 F

The Lowara ecocirc XLplus N 40-120 F pump offers quiet, energy-efficient performance for commercial HVAC and hot water systems, the Lowara ecocirc XLplus N 40-120 F pump provides reliable, quiet, and energy-efficient operation, making it an ideal choice for professionals.

Full Product Description and Benefits

The Lowara Ecocirc XLplus N 40-120 F (E510120AA) from National Pumps and Boilers is a high-efficiency stainless steel wet rotor circulator. Ideal for commercial hot water secondary circulation (HWS), it uses advanced ECM technology and a variable speed drive for significant energy savings. This Lowara pump offers an intuitive interface, versatile operating modes (proportional pressure, constant pressure, constant speed, night mode), and BMS communication via Modbus RTU and BACnet. It's a strong alternative to Commercial Circulators like the Wilo Stratos MAXO, offering efficiency, smart features, automatic air detection, and easy installation for reliable performance.

Key benefits:

• High-efficiency ECM motor and variable speed drive reduce electricity use, cutting energy bills.
• Smart Control & BMS Integration: User-friendly with Modbus RTU & BACnet BMS.
• Perfect for HWS: Durable stainless steel, ideal for hot water secondary circulation.
• Quiet Operation: Runs quietly (≤ 48dB(A)) with advanced design and air purging.
• Long-Lasting: Robust materials ensure durability and long service life.
• Versatile: Ideal for commercial heating, AC, and domestic hot water.
• Hassle-Free: Automatic air detection and night mode for efficient operation.

Product Specifications

• Product: Lowara ecocirc XLplus N 40-120 F
• Manufacturer Part Number: E510120AA
• Type: High-Efficiency Wet Rotor Circulator Pump with Variable Speed Drive

Pump Data:

• Port to Port: 250mm
• Nominal Connection Diameter (DN): 40 mm
• Connection: Flanged / DN40 (compatible Flanges available)
• Nominal Pressure: PN6/10
• Maximum Head: 12 metres
• Specific Energy Efficiency Index (EEI): ≤0,23
• Fluid Temperature Range: -10°C to +110°C
• Maximum Operating Pressure: 10 bar

Electrical Data:

• Rated Voltage: 230 V
• Frequency: 50Hz
• Rated Current: 2.4A
• Electrical Connection: Terminals
• Protection Class: IP44
• Insulation Class: F
• Sound Pressure Level: ≤ 48dB(A)

Materials:

• Pump Housing: Stainless steel
• Impeller: PPS
• Shaft: Stainless Steel
• Bush Bearing: Carbon, resin impregnated
• Mechanical Seal Ball ½": Aluminum oxide
• Casing Plate: Stainless steel
• Motor Housing: Aluminium
• O-Rings: EPDM
• Neck Ring: Stainless steel
• Rotor Can: Stainless steel
• Control Box: Polycarbonate

Key Features (General):

• Multiple control modes (proportional pressure, constant pressure, constant speed, ΔT control)
• Night setback
• Automatic air purge
• BMS connectivity (Modbus RTU & BACnet)
