DESCRIPTION

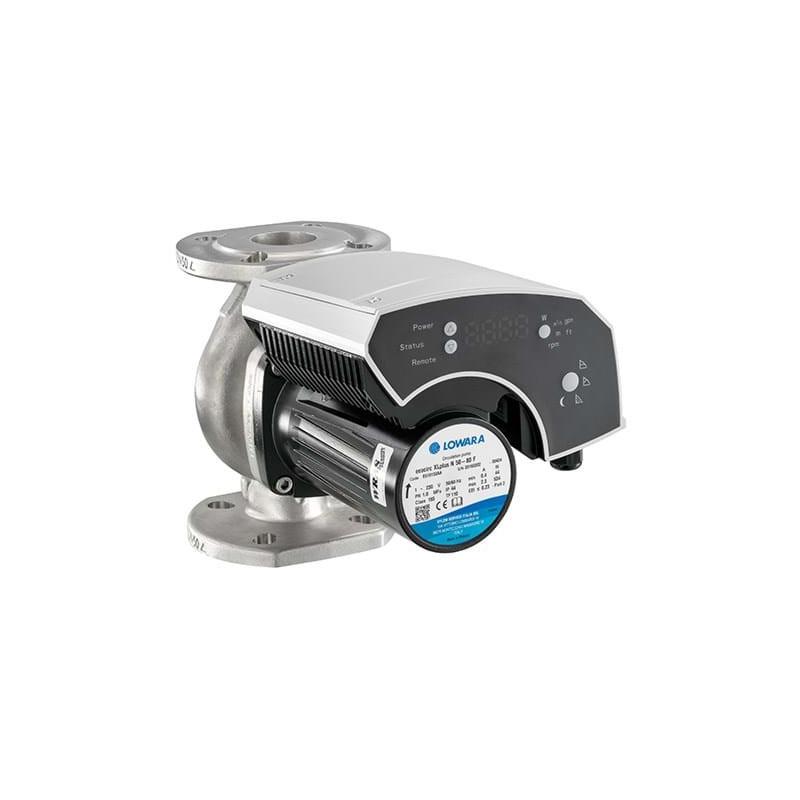

Ecocirc XLplus N 50-120 F

The Ecocirc XLplus N 50-120 F stainless steel circulator features a variable speed drive and is suitable for commercial hot water secondary circulation (HWS) and communicates with BMS systems via Modbus RTU and BACnet.

Pump Data

• Port to Port: 280mm
• Elec. Connection: Terminals
• Specific EEI: <=0,23
• Nominal Pressure: PN6/10
• Connection: Flanged / DN50

Electrical Data

• Rated Voltage: 230 V
• Frequency: 50Hz
• Protection class: IP44
• Insulation class: F
• Sound Pressure Level: <= 52dB(A)
• Rated Current: 4A

Materials

• Bush Bearing: Carbon, resin impregnated
• Mech.seal ball ½": Aluminum oxide
• Casing Plate: Stainless steel
• Motor Housing: Aluminium
• O-Rings: EDPM
• Pump Housing: Stainless steel
• Impeller: PPS
• Neck Ring: Stainless steel
• Rotor Can: Stainless steel
• Shaft: Stainless Steel
• Control box: Polycarbonate

PRODUCT SPECIFICATION

• • SKU: E510150AA
• • Manufacturer: Lowara
