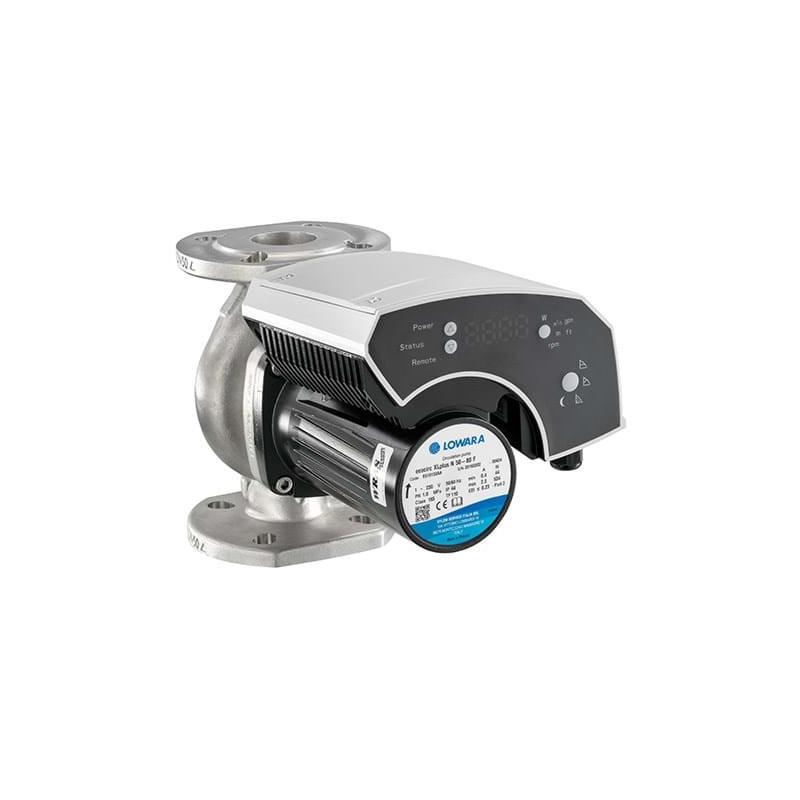

Lowara Ecocirc XLplus N 65-80 F (E510140AA)
Image unavailable

SKU: E510140AA

Lowara Ecocirc XLplus N 65-80 F (E510140AA)

BRAND: Lowara

CATEGORY: Commercial Circulators

Ecocirc XLplus N 65-80 F The Ecocirc XLplus N 65-80 F stainless steel circulator features a variable speed drive and...

£2,255.40 EX. VAT

£2,706.48 INC. VAT

Login to save to wishlist

Forgot password?

Don’t have an account yet? Register here

DESCRIPTION

Ecocirc XLplus N 65-80 F

The Ecocirc XLplus N 65-80 F stainless steel circulator features a variable speed drive and is suitable for commercial hot water secondary circulation (HWS) and communicates with BMS systems via Modbus RTU and BACnet.

Pump Data

  • Port to Port: 340mm
  • Elec. Connection: Terminals
  • Specific EEI: <=0,23
  • Nominal Pressure: PN6/10
  • Connection: Flanged / DN65

Electrical Data

  • Rated Voltage: 230 V
  • Frequency: 50Hz
  • Protection class: IP44
  • Insulation class: F
  • Sound Pressure Level: <= 48dB(A)
  • Rated Current: 2.2A

Materials

  • Bush Bearing: Carbon, resin impregnated
  • Mech.seal ball ½": Aluminum oxide
  • Casing Plate: Stainless steel
  • Motor Housing: Aluminium
  • O-Rings: EDPM
  • Pump Housing: Stainless steel
  • Impeller: PPS
  • Neck Ring: Stainless steel
  • Rotor Can: Stainless steel
  • Shaft: Stainless Steel
  • Control box: Polycarbonate


PRODUCT SPECIFICATION
