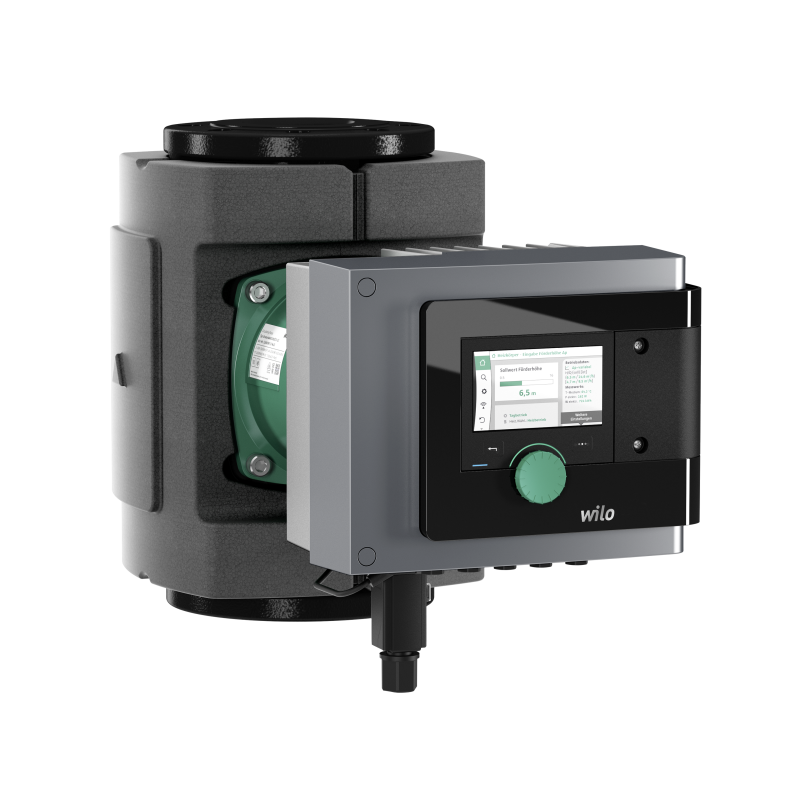

Wilo Stratos MAXO 80/0,5-12 PN6 Single Pump

Stratos MAXO 80/0,5-12 PN6 Single pump

Design

Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Equipment/function

Field of application

The pump facilitates an operation with highest system efficiency via precise setting of the control mode for the system-specific application (e.g., radiator, underfloor heating, ceiling cooling).

Heating

>Radiator
>Underfloor heating
>Ceiling heating
>Fan heater
>Concrete core heating*
>Hydraulic shunt
>Differential pressure-less distributor* Buffer heating*
>Heat exchanger
>Heat source circuit (heat pump) * District heating circuit*

Cooling
>Ceiling cooling
>Underfloor cooling
>Air-conditioning devices
>Concrete core cooling*
>Hydraulic shunt
>Differential pressure-less distributor* Buffer cooling*
>Heat exchanger
>Recooling circuit*
>District cooling circuit*

(* system types from SW≥01.05.08.00 available)

Heating and cooling combined

>Automatic switchover (version “-R7”: not possible; however, possible with Stratos MAXO temperature sensor)
>The following control modes are available depending on the selected application:

Control modes

>Constant speed (control mode)
>Δp-c for constant differential pressure
>Δp-v for variable differential pressure
