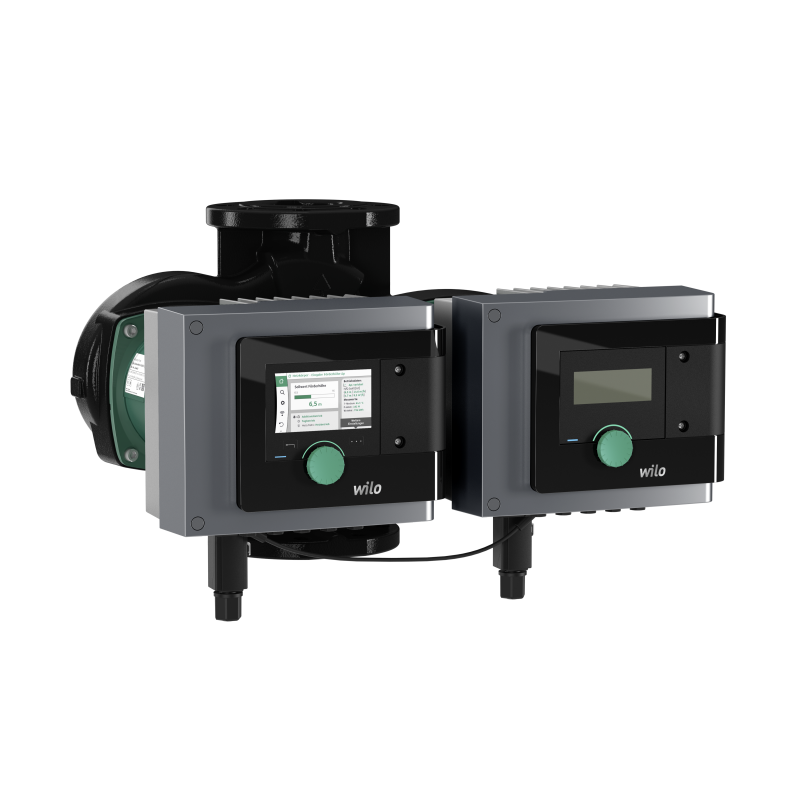

Design
Glandless circulator with flange connection, EC motor with automatic power adjustment
Application
Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.
Equipment/function
Operating modes
>Δp-c for constant differential pressure
>Δp-v for variable differential pressure
Manual functions
>Setting the operating mode
>Setting of pump output (delivery head)
Automatic functions
>Infinitely variable power adjustment according to the operating mode
>Deblocking function
>Soft start
>Integrated full motor protection
Signal and display functions
>Collective fault signal (potential-free NC contact) Fault signal light
>LED segment display for displaying the delivery head and fault codes
Double pump function
>Main/standby operation: for an automatic fault- actuated switchover, a corresponding switchgear must be provided on-site.
>Predefined control mode and set delivery head must be identical for both pumps.
Equipment
>Wrench attachment point on pump body (for threaded pipe union pumps)
>Quick electrical connection with Wilo plug. For the connection of the mains and SSM lines, with integrated strain relief
>For flange-end pumps: Flange versions
>Standard version for pumps DN 32 to DN 65: Combination flange PN 6/10 (flange PN 16 acc. to EN 1092-2) for counter flanges PN 6 and PN 16
>Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange
Typekey
Example: Wilo-Yonos MAXO-D 32/0.5-7
Yonos MAXO High-efficiency pump (screw-end or flange-end pump), electronically controlled
-D Double pump
32/ Nominal connection diameter
0.5-7 Nominal delivery head range [m]
Technical data
>Permissible temperature range of -20°C to +110°C Mains connection 1~230 V, 50/60 Hz
>Protection class IP X4D
>Flange connection DN 32 to DN 80
>Max. operating pressure of standard version: 6/10 bar or 6 bar (special version: 10 bar)
Materials
>Pump housing: grey cast iron with cataphoretic coating
>Shaft: Stainless steel
>Bearing: carbon, metal impregnated Impeller: Plastic
Scope of delivery
>Pump
>Incl. washers for flange screws (for nominal connection diameters DN 32 - DN 65)
>Including installation and operating instructions
| SKU | 2164656 |
