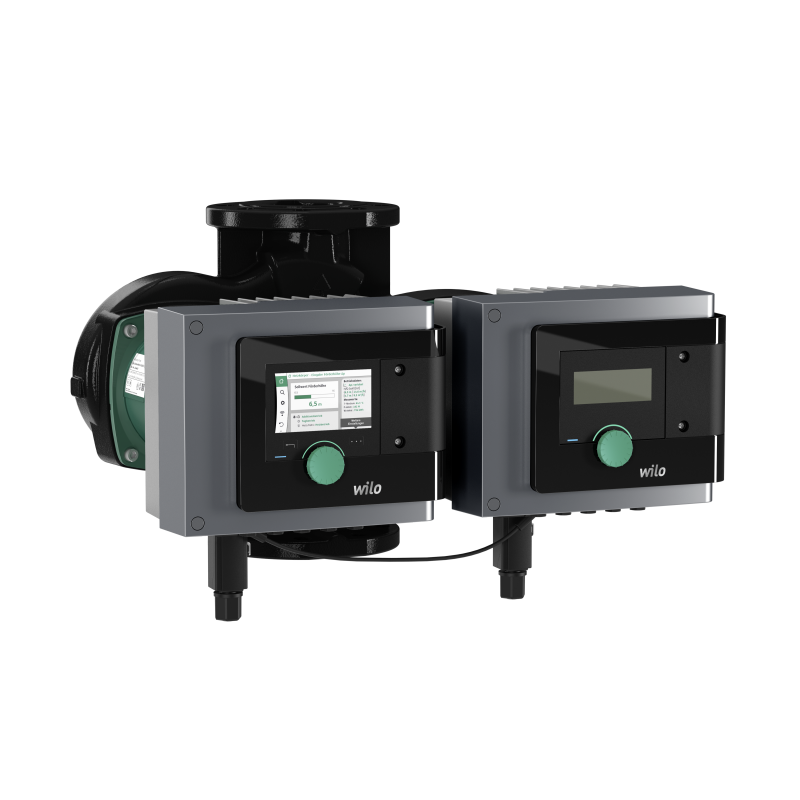

Wilo Stratos MAXO-D 65/0,5-6 PN6/10 Twin Pump

£5,101.98 (Inc. VAT)
£4,251.65 (Ex. VAT)

2164657 Commercial Circulators, Central Heating,
Description

Stratos MAXO-D 65/0,5-6 PN6/10 Twin Pump

Design

Glandless circulator with flange connection, EC motor with automatic power adjustment

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Equipment/function

Operating modes

>Δp-c for constant differential pressure
>Δp-v for variable differential pressure

Manual functions

>Setting the operating mode
>Setting of pump output (delivery head)

Automatic functions

>Infinitely variable power adjustment according to the operating mode
>Deblocking function
>Soft start
>Integrated full motor protection

Signal and display functions

>Collective fault signal (potential-free NC contact) Fault signal light
>LED segment display for displaying the delivery head and fault codes

Double pump function

>Main/standby operation: for an automatic fault- actuated switchover, a corresponding switchgear must be provided on-site.
>Predefined control mode and set delivery head must be identical for both pumps.

Equipment

>Wrench attachment point on pump body (for threaded pipe union pumps)
>Quick electrical connection with Wilo plug. For the connection of the mains and SSM lines, with integrated strain relief
>For flange-end pumps: Flange versions
>Standard version for pumps DN 32 to DN 65: Combination flange PN 6/10 (flange PN 16 acc. to EN 1092-2) for counter flanges PN 6 and PN 16
>Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange

Typekey

Example: Wilo-Yonos MAXO-D 32/0.5-7

Yonos MAXO High-efficiency pump (screw-end or flange-end pump), electronically controlled
-D Double pump
32/ Nominal connection diameter

0.5-7 Nominal delivery head range [m]

Technical data

>Permissible temperature range of -20°C to +110°C Mains connection 1~230 V, 50/60 Hz
>Protection class IP X4D
>Flange connection DN 32 to DN 80
>Max. operating pressure of standard version: 6/10 bar or 6 bar (special version: 10 bar)

Materials

>Pump housing: grey cast iron with cataphoretic coating
>Shaft: Stainless steel
>Bearing: carbon, metal impregnated Impeller: Plastic

Scope of delivery

>Pump
>Incl. washers for flange screws (for nominal connection diameters DN 32 - DN 65)
>Including installation and operating instructions


More information
SKU 2164657
Manufacturer Wilo

Stratos MAXO-D 65/0,5-6 PN6/10 Twin Pump

Design

Glandless circulator with flange connection, EC motor with automatic power adjustment

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Equipment/function

Operating modes

>Δp-c for constant differential pressure
>Δp-v for variable differential pressure

Manual functions

>Setting the operating mode
>Setting of pump output (delivery head)

Automatic functions

>Infinitely variable power adjustment according to the operating mode
>Deblocking function
>Soft start
>Integrated full motor protection

Signal and display functions

>Collective fault signal (potential-free NC contact) Fault signal light
>LED segment display for displaying the delivery head and fault codes

Double pump function

>Main/standby operation: for an automatic fault- actuated switchover, a corresponding switchgear must be provided on-site.
>Predefined control mode and set delivery head must be identical for both pumps.

Equipment

>Wrench attachment point on pump body (for threaded pipe union pumps)
>Quick electrical connection with Wilo plug. For the connection of the mains and SSM lines, with integrated strain relief
>For flange-end pumps: Flange versions
>Standard version for pumps DN 32 to DN 65: Combination flange PN 6/10 (flange PN 16 acc. to EN 1092-2) for counter flanges PN 6 and PN 16
>Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange

Typekey

Example: Wilo-Yonos MAXO-D 32/0.5-7

Yonos MAXO High-efficiency pump (screw-end or flange-end pump), electronically controlled
-D Double pump
32/ Nominal connection diameter

0.5-7 Nominal delivery head range [m]

Technical data

>Permissible temperature range of -20°C to +110°C Mains connection 1~230 V, 50/60 Hz
>Protection class IP X4D
>Flange connection DN 32 to DN 80
>Max. operating pressure of standard version: 6/10 bar or 6 bar (special version: 10 bar)

Materials

>Pump housing: grey cast iron with cataphoretic coating
>Shaft: Stainless steel
>Bearing: carbon, metal impregnated Impeller: Plastic

Scope of delivery

>Pump
>Incl. washers for flange screws (for nominal connection diameters DN 32 - DN 65)
>Including installation and operating instructions


More information
SKU 2164657
Manufacturer Wilo
